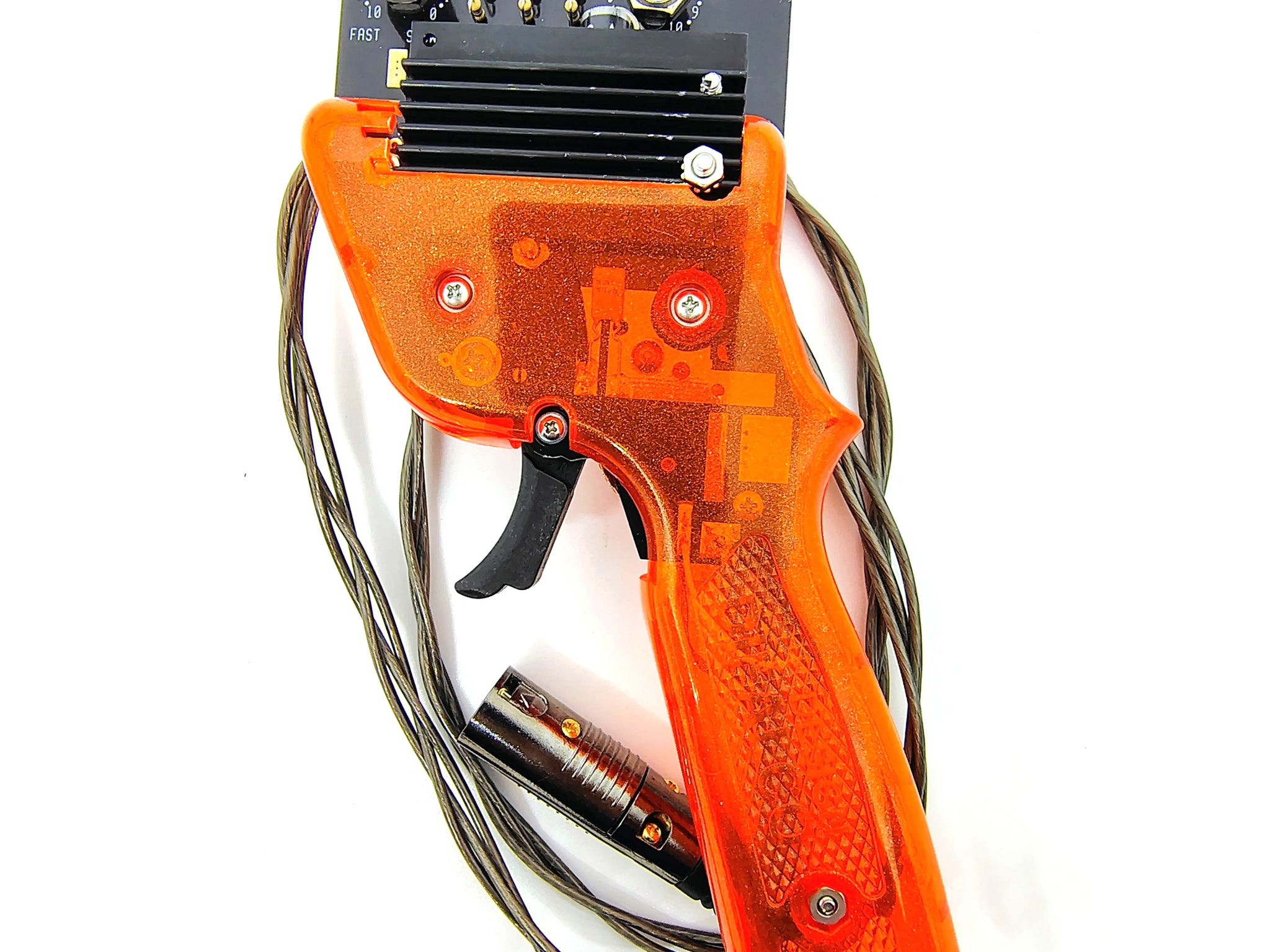

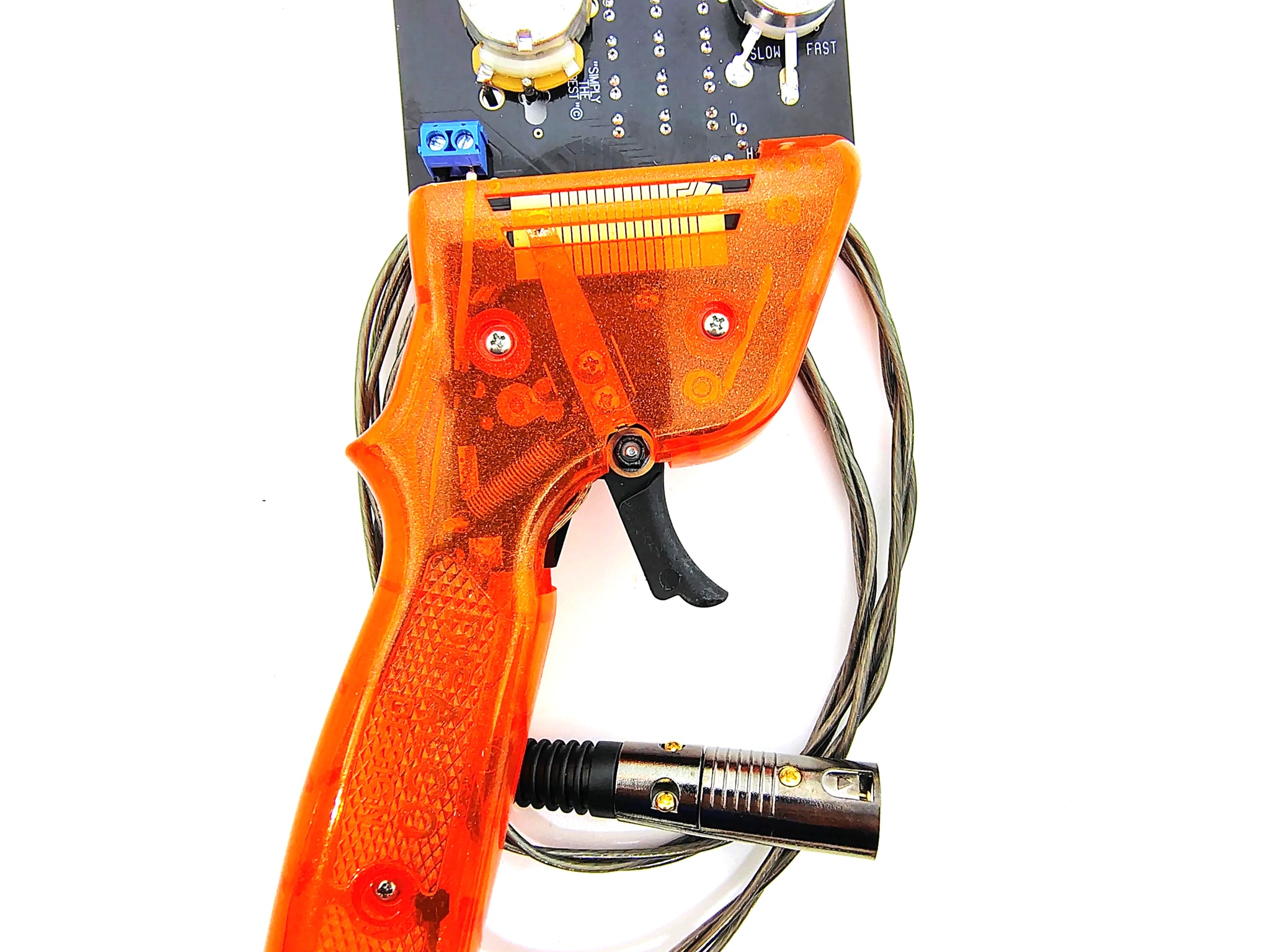

DiFalco DD300X Neo Electronic Slot Car Controller – XLR

Smooth electronic control, adjustable braking and sensitivity, dual polarity and DiFalco's precision ball-bearing trigger.

The DiFalco Design Neo DD300X is a high-performance electronic controller designed primarily for 1/32 analog slot car racing. It brings many of the construction and performance features associated with DiFalco's premium controllers to the more affordable Neo series.

With a 17-band electronic throttle, adjustable braking, adjustable sensitivity, dual-polarity capability and precision ball-bearing trigger, the DD300X provides substantially more adjustment and versatility than a conventional fixed-resistance controller.

This version is supplied with our preferred 3-pin XLR connector for fast, secure connection to OmniSlotBox systems and other XLR-equipped analog tracks.

Key Features

• 17-Band Electronic Throttle – Smooth, progressive throttle response
• Adjustable Sensitivity – Tailor throttle response to different cars, motors and track conditions
• Adjustable Braking – Fine-tune braking to suit the car, track and driver
• Dual Polarity – Supplied in positive-polarity configuration and user-changeable
• Precision Ball-Bearing Trigger
• Threaded Adjustable Trigger Pivot
• Fiberglass Controller Frame
• Floating Brass Power Contact
• Heavy-Duty Wiring
• Stainless-Steel Hardware
• Nickel-Plated Circuit Board
• Open-Frame, Serviceable Design
• 3-Pin XLR Connector
• Designed and hand-built by DiFalco Design

17-Band Electronic Throttle

The DD300X uses a 17-band electronic throttle to provide smooth, progressive control throughout the trigger range.

Unlike conventional resistor controllers that are optimized around a particular resistance range, the electronic design gives the DD300X considerably greater flexibility across different 1/32 cars and motors.

This makes it a useful choice for racers who run several classes but want to become familiar with one controller rather than maintaining multiple resistance-specific controllers.

Adjustable Sensitivity

The sensitivity control allows the throttle response to be tailored to the motor, track conditions and driver's preference.

Response can be softened for a powerful or difficult-to-drive car or increased when a more immediate throttle response is desirable.

Adjustable Braking

Adjustable braking provides a broad range of control so braking characteristics can be matched to the car, track layout, traction level and driving style.

This is particularly useful when moving between cars with substantially different coast and braking characteristics.

Precision Ball-Bearing Trigger

One of the DD300X's standout mechanical features is DiFalco's ball-bearing trigger with threaded trigger pin.

The bearing-supported trigger provides:

• Smooth, low-friction movement
• Precise throttle modulation
• Reduced trigger side play
• Consistent wiper-button contact
• Long service life

The adjustable pivot allows trigger play to be corrected as necessary, helping maintain a precise feel after extensive use.

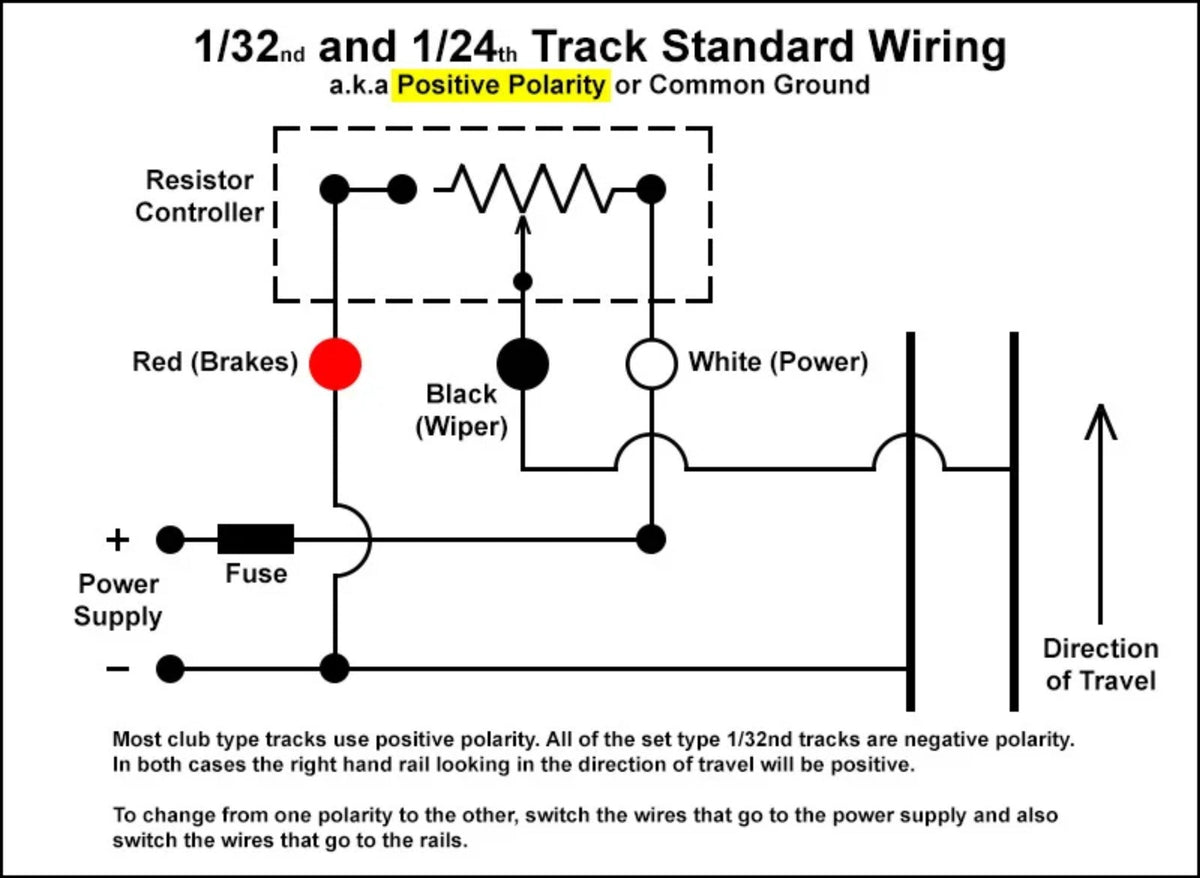

Dual Polarity

The DD300X is supplied configured for positive-polarity operation, the standard now used by many commercial and club raceways.

Unlike positive-polarity-only controllers, the DD300X can be changed for opposite-polarity operation by the user with a small screwdriver. This makes it particularly useful for racers who visit different tracks where wiring standards may vary.

Professional Construction

DiFalco Neo controllers are built on a durable fiberglass frame and use race-oriented components including:

• Large floating brass power contact for efficient current transfer
• Heavy-duty wiring
• Stainless-steel hardware
• Nickel-plated circuit board for improved corrosion resistance

The result is a controller designed to withstand regular club and competitive racing rather than being treated as disposable electronics.

Comfortable DiFalco Handle

The DD300X uses DiFalco's sturdy ergonomic controller handle, designed to remain comfortable during extended racing sessions.

Combined with the smooth ball-bearing trigger, the design reduces unnecessary trigger effort and helps the driver maintain consistent control during longer races.

Easy Maintenance & Serviceable Design

The open-frame construction provides easy access for routine inspection and cleaning without unnecessary disassembly.

DiFalco controllers are designed to be maintained and repaired. Many common service components are inexpensive and replaceable, helping extend the useful life of the controller.

XLR Connector & Other Connection Options

This controller is supplied with our preferred 3-pin XLR connector for a fast, secure connection to OmniSlotBox systems and other XLR-equipped tracks.

DiFalco controllers can also be supplied with other connector types. If you require alligator clips, banana plugs, or another connection, message us before ordering or select the appropriate connector option. You can also have it both ways with one of our separately available adapters.

Handle Colors & Special Orders

Handle colors vary according to current inventory. Controllers in stock are normally shipped immediately in an available color.

If you would like a particular handle color, note your preference when ordering. If that color is not currently in our inventory, your controller can be custom built by DiFalco Design and shipped directly to you. Additional lead time will apply.

Availability

We do our best to keep the DiFalco controllers we offer in stock, but during busy periods we may occasionally sell out.

DiFalco Design controllers are individually fabricated in relatively small quantities. When a controller must be built to order, current lead time is approximately 3–4 weeks from the order date.

If timing is important, message us before ordering and we'll be happy to confirm current availability.

Specifications

• Manufacturer: DiFalco Design
• Model: DD300X Neo
• Controller Type: Electronic Analog
• Throttle: 17-Band
• Adjustable Sensitivity: Yes
• Adjustable Brake: Yes
• Ball-Bearing Trigger: Yes
• Adjustable Trigger Pivot: Yes
• Polarity: Dual Polarity, supplied configured for positive polarity
• Primary Application: 1/32 Analog Slot Car Racing
• Connection: 3-Pin XLR

Why Choose the DD300X?

• Smooth 17-band electronic throttle
• Adjustable sensitivity
• Adjustable braking
• Dual-polarity capability
• Precision ball-bearing trigger
• Heavy-duty fiberglass construction
• Nickel-plated circuit board
• Easy routine maintenance
• Repairable, serviceable design
• DiFalco replacement parts and factory support

The DD300X Neo is an excellent choice for the 1/32 racer who wants the smoothness and adaptability of an electronic controller, useful brake and sensitivity adjustments, and the added versatility of dual-polarity operation.

Service & Support

OmniSlotBox provides assistance with controller selection, compatibility, setup and basic troubleshooting. Factory repair, replacement parts and advanced technical support are also available through DiFalco Design when required.

Smooth electronic control, useful adjustment and dual-polarity versatility in a durable, serviceable DiFalco controller.
