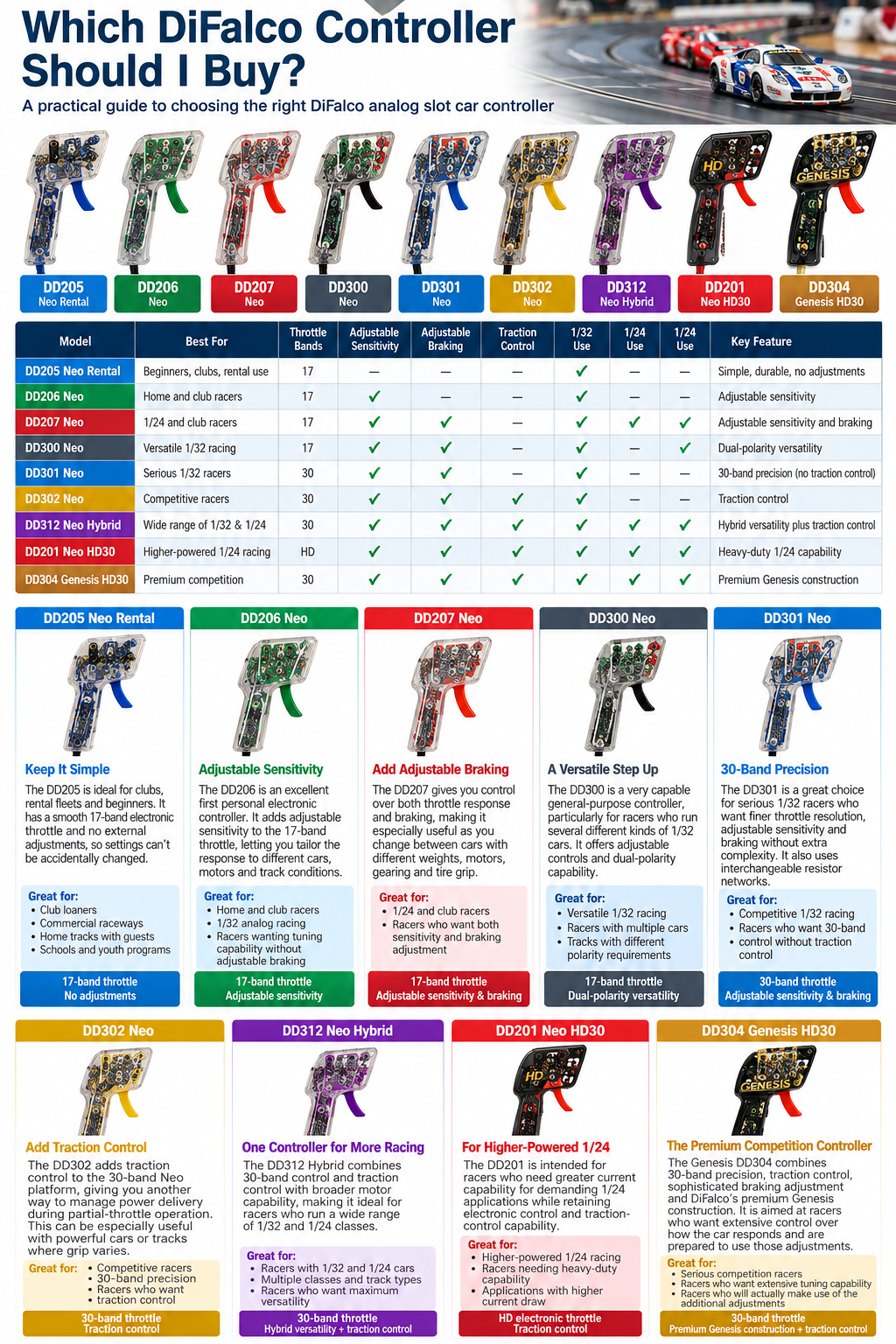

Which DiFalco Controller Should I Buy?

A practical guide to choosing the right DiFalco analog slot car controller

DiFalco makes an unusually broad range of electronic slot car controllers. That's good news for racers, but the model numbers and available features can make choosing the right one a little confusing.

The key is not simply buying the most expensive controller. The right controller depends on the cars you race, the motors you use, the amount of adjustment you want, and whether you're racing primarily 1/32 or higher-powered 1/24 cars.

This guide covers the DiFalco controllers we offer at OmniSlotBox and explains where each model fits.

First: Why an Electronic Controller?

A traditional resistor controller is designed around a relatively narrow range of motor characteristics. Change to a substantially different motor and the controller can suddenly feel too aggressive, too slow, or simply wrong.

DiFalco electronic controllers provide much greater flexibility. Instead of requiring a different resistor value for every type of car, one controller can work effectively with a much broader range of motors and racing conditions.

Depending on the model, DiFalco controllers also offer adjustable sensitivity, adjustable braking, traction control and finer 30-band throttle resolution.

Just as important, DiFalco controllers are built to be maintained and repaired rather than treated as disposable electronics. Replacement components and factory support are available, and the open-frame construction makes normal maintenance straightforward.

Quick Guide: Which One Should I Choose?

Model	Best For	Throttle	Key Feature
DD205 Neo Rental	Beginners, clubs, rental and shared controllers	17-band	Simple, durable, no adjustments to accidentally change
DD206 Neo	Home and club racers wanting an affordable adjustable controller	17-band	Adjustable sensitivity
DD207 Neo	1/24 and club racers wanting sensitivity and brake adjustment	17-band	Adjustable sensitivity and braking
DD300 Neo	Versatile 1/32 racing	17-band	Dual-polarity versatility
DD301 Neo	Serious 1/32 racers wanting finer throttle control	30-band	30-band precision without traction control
DD302 Neo	Competitive racers wanting additional tuning	30-band	Traction control
DD312 Neo Hybrid	Racers running a broad mix of 1/32 and popular 1/24 classes	30-band	Hybrid versatility plus traction control
DD201 Neo HD30	Higher-powered 1/24 racing	HD electronic	Heavy-duty 1/24 capability and traction control
DD304 Genesis HD30	Serious competition racers wanting DiFalco's premium controller	30-band	Premium Genesis construction and traction control

DD205 Neo Rental: Keep It Simple

The DD205 is the controller we would choose when several different people will be using the same controller.

It has DiFalco's smooth 17-band electronic throttle but deliberately eliminates external sensitivity and brake adjustments. That means a guest cannot unknowingly change a setting and hand the next racer a completely different-feeling controller.

That makes it particularly well suited to:

• Club loaner controllers
• Commercial raceways
• Home tracks with guests
• Rental fleets
• Schools and youth programs
• Beginning racers

Choose the DD205 if simplicity and consistency are more important than adjustment.

DD206 Neo: Add Adjustable Sensitivity

The DD206 is an excellent first personal electronic controller.

It retains the 17-band electronic throttle but adds adjustable sensitivity. This lets you change how aggressively the car responds to trigger movement and makes the controller easier to tailor to different cars, motors and track conditions.

Choose the DD206 if you want an affordable electronic controller with useful tuning capability but don't need adjustable braking.

DD207 Neo: Add Adjustable Braking

The DD207 takes the basic 17-band concept another step by giving the racer control over both throttle response and braking.

Brake adjustment becomes particularly useful as you change between cars with different weights, motors, gearing and tire grip.

Choose the DD207 if you want the simplicity of a 17-band controller but want control over both sensitivity and braking.

DD300 Neo: A Versatile Step Up

The DD300 is a very capable general-purpose electronic controller, particularly for racers who run several different kinds of 1/32 cars.

It combines DiFalco's smooth electronic throttle with adjustable controls and dual-polarity capability, making it a controller that can continue to serve as your racing interests expand.

Choose the DD300 if you want a versatile personal controller that can cover a broad range of 1/32 racing without moving into the 30-band models.

Why 30 Bands Matter

A 30-band controller divides the trigger movement into smaller power increments than a 17-band controller.

That does not automatically make the car faster. What it gives the driver is finer control over how power is applied, particularly when feeding throttle through a corner or accelerating near the limit of traction.

For casual racing, 17 bands may be entirely sufficient. As car setup, track conditions and driver consistency become more important, the additional resolution of a 30-band controller becomes increasingly useful.

DD301 Neo: 30-Band Precision Without Extra Complexity

The DD301 is an attractive choice for the serious 1/32 racer who wants finer throttle resolution, adjustable sensitivity and adjustable braking without paying for features that may not be needed.

It also uses interchangeable resistor networks, allowing the controller's response range to be tailored further if necessary.

Choose the DD301 if you want 30-band precision and the adjustments most racers actually use, but don't need traction control.

DD302 Neo: Add Traction Control

The DD302 adds DiFalco's traction-control capability to the 30-band Neo platform.

Traction control provides another way to manage power delivery during partial-throttle operation. This can be particularly useful with powerful cars or on tracks where grip varies considerably.

Choose the DD302 if you're a competitive racer who wants 30-band resolution plus another level of power-delivery adjustment.

DD312 Neo Hybrid: One Controller for a Wider Range of Racing

The DD312 Hybrid is designed for racers whose interests cross the traditional boundary between 1/32 racing and many popular 1/24 classes.

It combines 30-band control and traction control with broader motor capability, making it particularly attractive to racers who don't want a separate controller for every class they run.

Choose the DD312 if versatility across different types of racing is one of your highest priorities.

DD201 Neo HD30: For Higher-Powered 1/24 Racing

The DD201 moves into DiFalco's heavy-duty controller territory. It is intended for racers who need greater current capability for more demanding 1/24 applications while retaining electronic control and traction-control capability.

Choose the DD201 when your racing is primarily higher-powered 1/24 rather than typical home-track 1/32 racing.

DD304 Genesis HD30: The Premium Competition Controller

The Genesis DD304 sits at the top of the DiFalco range we offer.

It combines 30-band precision, traction control, sophisticated braking adjustment and DiFalco's premium Genesis construction. It is aimed at racers who want extensive control over how the car responds and are prepared to use those adjustments.

More adjustment is useful only when you understand what to do with it. For many racers, a DD206, DD300 or DD301 may actually be the more sensible controller.

Choose the DD304 when you want DiFalco's premium competition platform and will actually make use of its additional tuning capability.

What About XLR, Alligator Clips and Banana Plugs?

The connector does not change how the controller performs. It simply determines how the controller connects to the track.

At OmniSlotBox, we strongly prefer 3-pin XLR connectors. XLR provides a secure connection, makes polarity wiring much harder to accidentally reverse, and allows controllers to be connected and disconnected quickly.

Our OmniSlotBox systems use our standard XLR pinout:

• Pin 1 – Black
• Pin 2 – White
• Pin 3 – Red

We also offer adapters for tracks using alligator clips and other connection systems, so choosing an XLR-equipped controller does not mean it can only be used on an XLR-equipped track.

Don't Forget Track Polarity

Electronic controllers must be matched to the electrical polarity of the track.

Many modern analog installations, including OmniSlotBox installations, use positive polarity. Some older tracks and commercial raceways may be wired differently.

If you're not sure about the polarity of a track, check before connecting an electronic controller. Incorrect wiring can damage electronic controllers.

Our Practical Recommendations

For a club, rental fleet or guest controller:
DD205 Neo Rental.

For someone buying their first good electronic controller:
DD206 Neo.

For a racer who wants adjustable brakes as well as sensitivity:
DD207 Neo.

For a versatile personal 1/32 controller:
DD300 Neo.

For serious 1/32 racing with finer throttle resolution:
DD301 Neo.

For 30-band racing with traction control:
DD302 Neo.

For someone racing a wide range of 1/32 and 1/24 classes:
DD312 Neo Hybrid.

For higher-powered 1/24 racing:
DD201 Neo HD30.

For the racer who wants DiFalco's premium competition controller:
DD304 Genesis HD30.

Still Not Sure?

Controllers are personal equipment. The most expensive controller is not automatically the right controller for every racer.

If you tell us what cars you race, what motors they use, what type of track you run on and what controller you're using now, we can help narrow the choices.

At OmniSlotBox, we don't just sell slot car controllers. We race with them, install them, wire tracks for them and help customers sort out compatibility problems when something doesn't behave as expected.

Choose the controller that fits the racing you actually do—and leaves enough capability for the racing you want to do next.
