Positive Polarity Analog Controller Wiring Guide

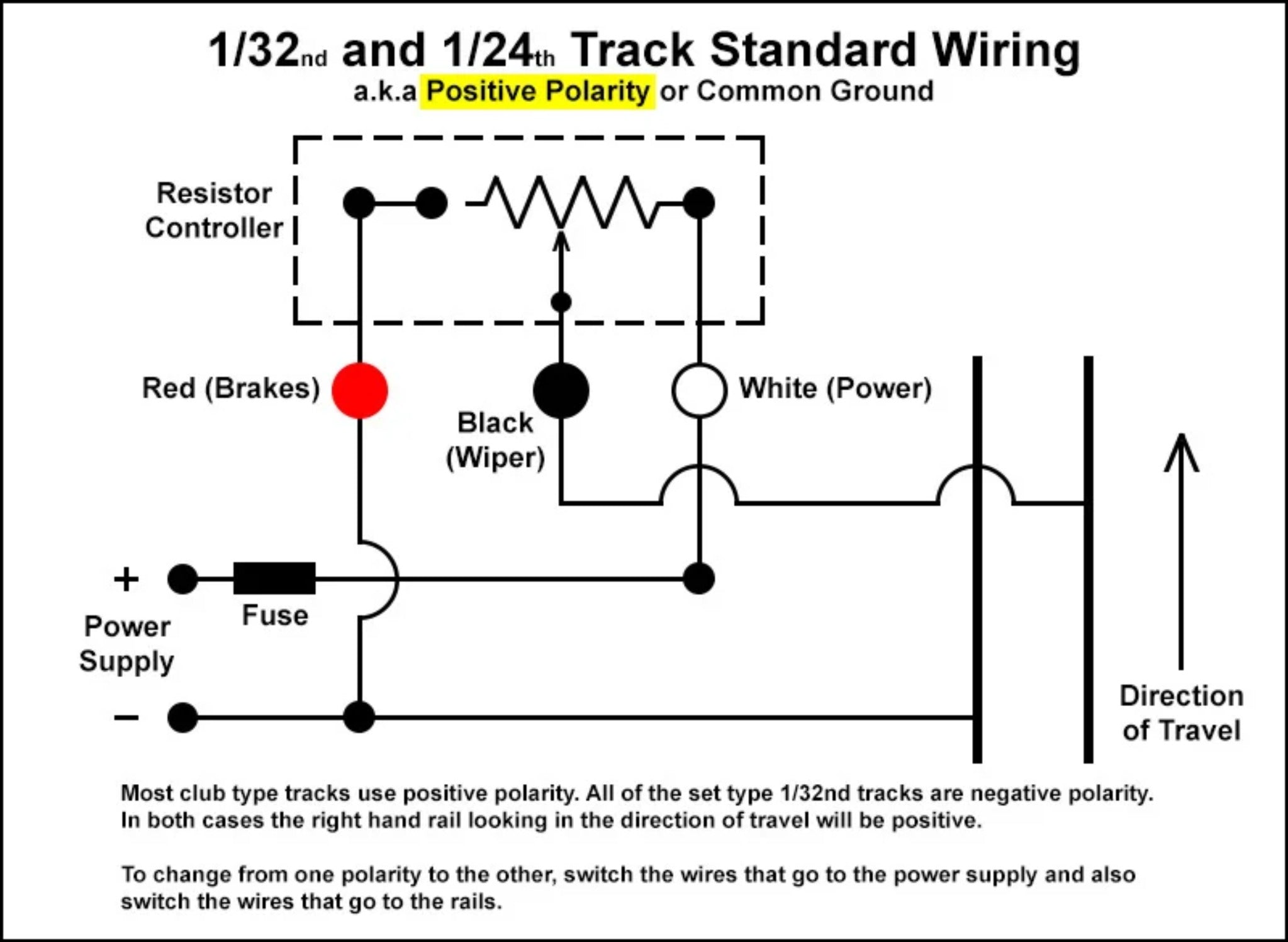

Positive polarity common-ground analog slot car controller wiring diagram

Track polarity is one of the most common sources of confusion when choosing or connecting an analog slot car controller. This guide shows the standard positive-polarity/common-ground wiring used by most 1/32 and 1/24 club-style analog tracks.

Positive Polarity / Common Ground

Most club-style 1/32 and 1/24 analog tracks use positive polarity, also commonly called common ground.

  • Red – Brake
  • Black – Wiper / Track output
  • White – Power

Looking in the direction of travel, the right-hand rail is positive.

Why Polarity Matters

Many electronic analog controllers are designed for a specific track polarity. Connecting a positive-polarity-only controller to a negative-polarity track can cause incorrect operation and, with some electronic controllers, may damage the controller. Always verify track polarity before connecting an electronic controller.

Some analog controllers are designed for dual-polarity operation and can work on either positive- or negative-polarity tracks. When in doubt, check the controller listing or contact us before connecting it.

OmniSlotBox XLR Standard

For OmniSlotBox-equipped analog tracks, our preferred 3-pin XLR wiring is:

  • Pin 1 – Black – Track / Wiper
  • Pin 2 – White – Positive Power
  • Pin 3 – Red – Brake / Negative

This keeps analog controller connections fast, secure and consistent while reducing the chance of accidentally reversing leads.

If you are unsure whether your analog track is positive polarity, negative polarity, or wired correctly, contact OmniSlotBox before connecting an electronic controller.
