Affordable electronic control with adjustable sensitivity and DiFalco's precision trigger.

The DiFalco Design DD206 Neo is an excellent step up for racers who want smoother electronic throttle control and useful adjustability without moving into the price range of a premium competition controller.

The DD206 combines a 17-band electronic throttle with adjustable sensitivity, a precision ball-bearing trigger, fused protection, and rugged DiFalco construction.

It is particularly well suited to 1/32 home and club racing and many 1/24 applications using Falcon, Hawk, FK, TSR, 16D, and similar motors .

Key Features

• 17-Band Electronic Throttle– Smooth, progressive power control
• Adjustable Sensitivity– Tailor throttle response to different cars and motors
• Precision Ball-Bearing Trigger– Smooth, low-friction action
• Fused Power Circuit
• Fused Brake Circuit
• Diode Protection– Helps protect against wiring faults
• Positive Polarity
• Comfortable Trigger-Style Handle
• Heavy-Duty, Serviceable Construction
• Designed and hand-built byDiFalco Design

17-Band Electronic Control

The DD206 uses DiFalco's 17-band electronic wiper system to provide smooth throttle progression throughout the trigger range.

Unlike a conventional fixed-resistance controller, the electronic design provides greater flexibility for matching controller response to different motors, cars, track conditions, and driving styles.

Adjustable Sensitivity

The built-in sensitivity control changes how aggressively the car responds to trigger movement.

This allows the controller to be tuned for cars with different motors, gearing, traction levels, and driving characteristics without requiring a different resistance controller for each class.

Note: The DD206 does not include adjustable braking. Racers who want both adjustable sensitivity and adjustable braking should consider the DiFalco DD207 Neo .

Precision Ball-Bearing Trigger

The trigger rides on a precision ball bearing for smooth movement with reduced friction and side play. This provides a refined trigger feel and helps maintain consistent wiper contact through extended racing sessions.

Recommended Applications

• 1/32 scale home and club racing
• Many 1/24 commercial and club applications
• Falcon, Hawk, FK-style, TSR, 16D, and similar moderate-power motors
• Racers upgrading from conventional resistor controllers

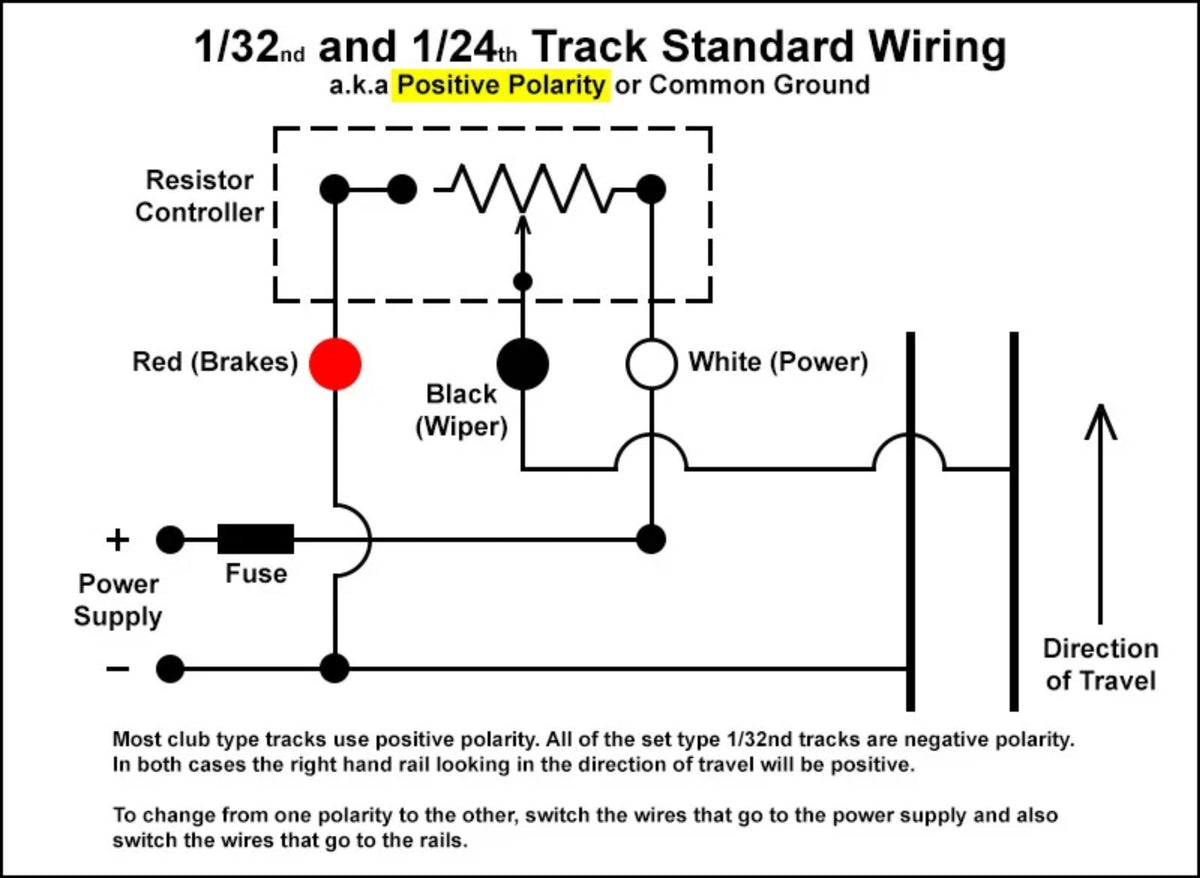

Positive Polarity

The DD206 is designed for positive-polarity analog slot car tracks , now common on modern commercial, club, home, and OmniSlotBox installations.

XLR Connector & Other Connection Options

This controller is supplied with our preferred 3-pin XLR connector for a fast, secure connection to OmniSlotBox systems and other XLR-equipped tracks.

DiFalco controllers can also be supplied with other connector types.

Handle Colors & Special Orders

Handle color varies according to current inventory. We normally ship an available color so your controller can be supplied without unnecessary delay.

A controller can be built specifically for your order by DiFalco Design when the requested color is available. Additional lead time may be required.

Availability

DiFalco controllers are individually hand-built in relatively small quantities. We stock popular models whenever possible, but demand can occasionally exceed available inventory.

If a controller must be built to order, typical lead time may be approximately 3–4 weeks .
