DS Electronics DS-3510 PHN-02 PWM Analog Slot Car Controller – 4mm Banana Plugs

Advanced PWM control, contactless magnetic trigger, adjustable throttle response, braking and voltage reduction for serious 1/32 and 1/24 analog racing.

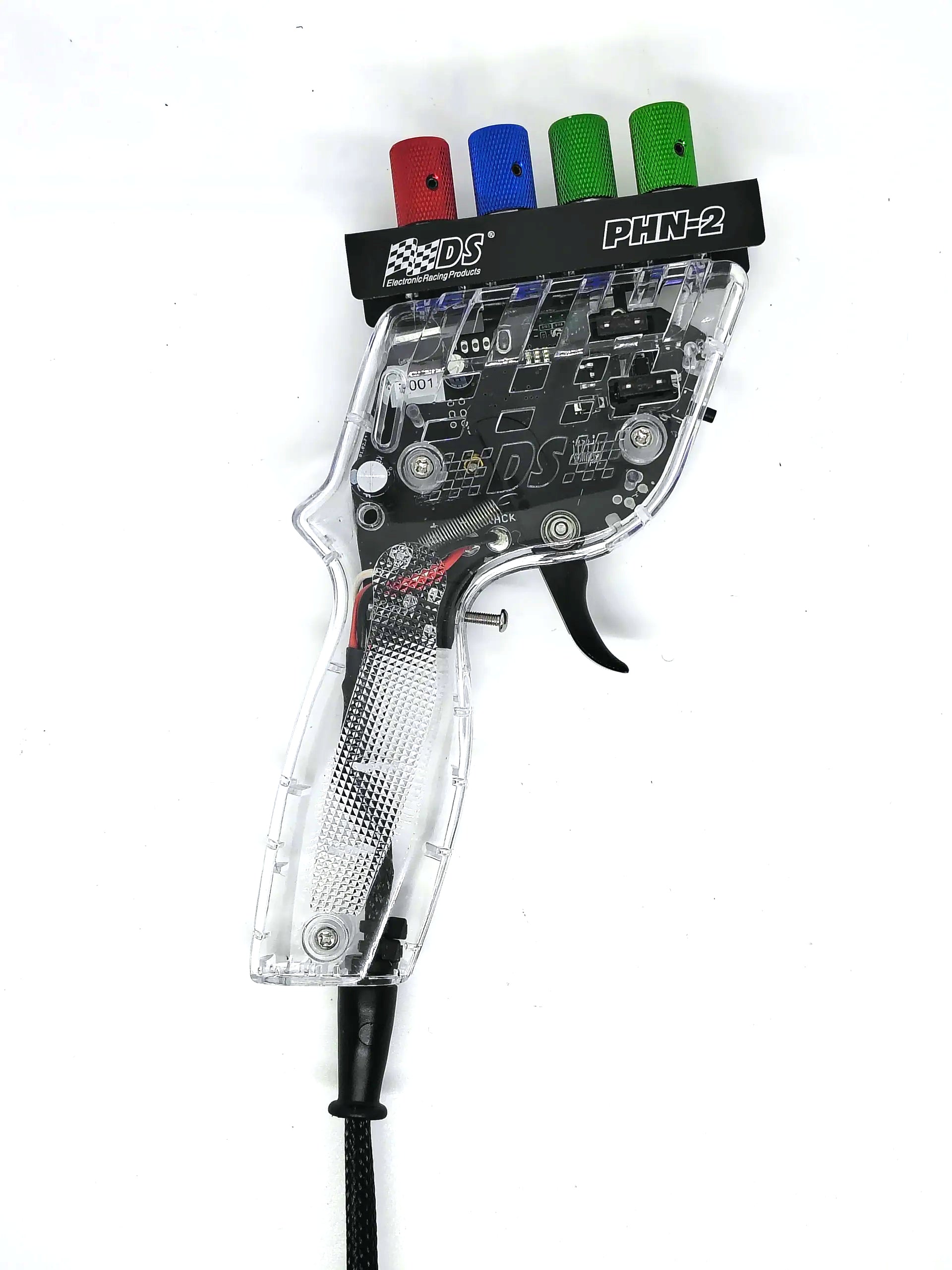

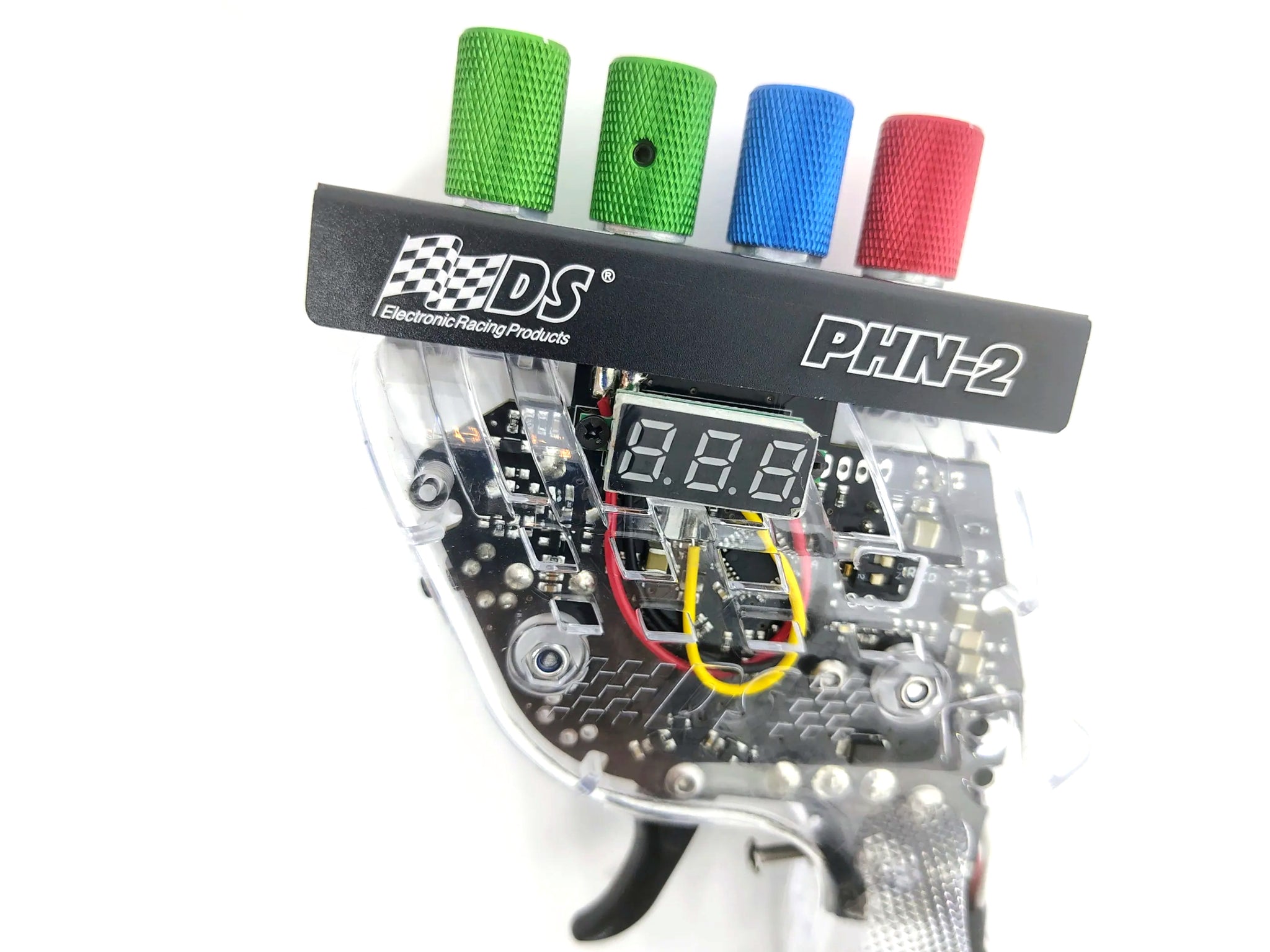

The DS Electronics DS-3510 PHN-02, distributed by Scaleauto, is a sophisticated electronic analog slot car controller designed for racers who want extensive control over throttle response, braking and available power.

Its contactless magnetic trigger rides on ball bearings for exceptionally smooth action without a conventional electrical wiper or resistor contact controlling motor current.

The PHN-02 combines 100% electronic PWM throttle control with two throttle-response adjustments, adjustable braking, selectable 1/32 and 1/24 response modes, and a built-in voltage-reduction system that can reduce output to approximately 70% of the incoming track voltage.

This standard version is supplied with factory-installed 4mm banana plugs, providing direct compatibility with banana-jack driver stations and additional flexibility at tracks using traditional alligator-clip connections.

Key Features

• 100% Electronic PWM Control
• Contactless Magnetic Trigger Sensor
• Ball-Bearing Trigger Mechanism
• Two Throttle-Curve Adjustments – Base response and aggressiveness
• Adjustable Braking
• Voltage Reduction Control – Reduce output to approximately 70% of input voltage
• FULL / RED Voltage Selection
• 1/32 / 1/24 Response Selection
• Emergency Brake Button
• Adjustable Trigger Length
• Double-Fuse Protection
• Flexible Factory Cable
• Operating Voltage: 8–22V DC
• Factory 4mm Banana Plugs
• Banana Plugs Can Insert Into Many Traditional Alligator Clips

Contactless Magnetic Trigger

The PHN-02 does not depend on a conventional resistor board or electrical wiper to determine trigger position.

A magnetic sensor detects trigger movement while the trigger itself operates on ball bearings. This provides an extremely smooth mechanical feel with minimal friction and eliminates normal electrical contact wear from the throttle-position sensing system.

100% Electronic PWM Throttle Control

The PHN-02 uses Pulse Width Modulation (PWM) to control power to the car.

Instead of reducing voltage through a traditional wire-wound resistor, PWM rapidly switches power electronically. This provides precise control at low and intermediate throttle positions while retaining strong motor response.

The result is particularly useful on technical tracks where small throttle changes matter.

Two Throttle-Curve Adjustments

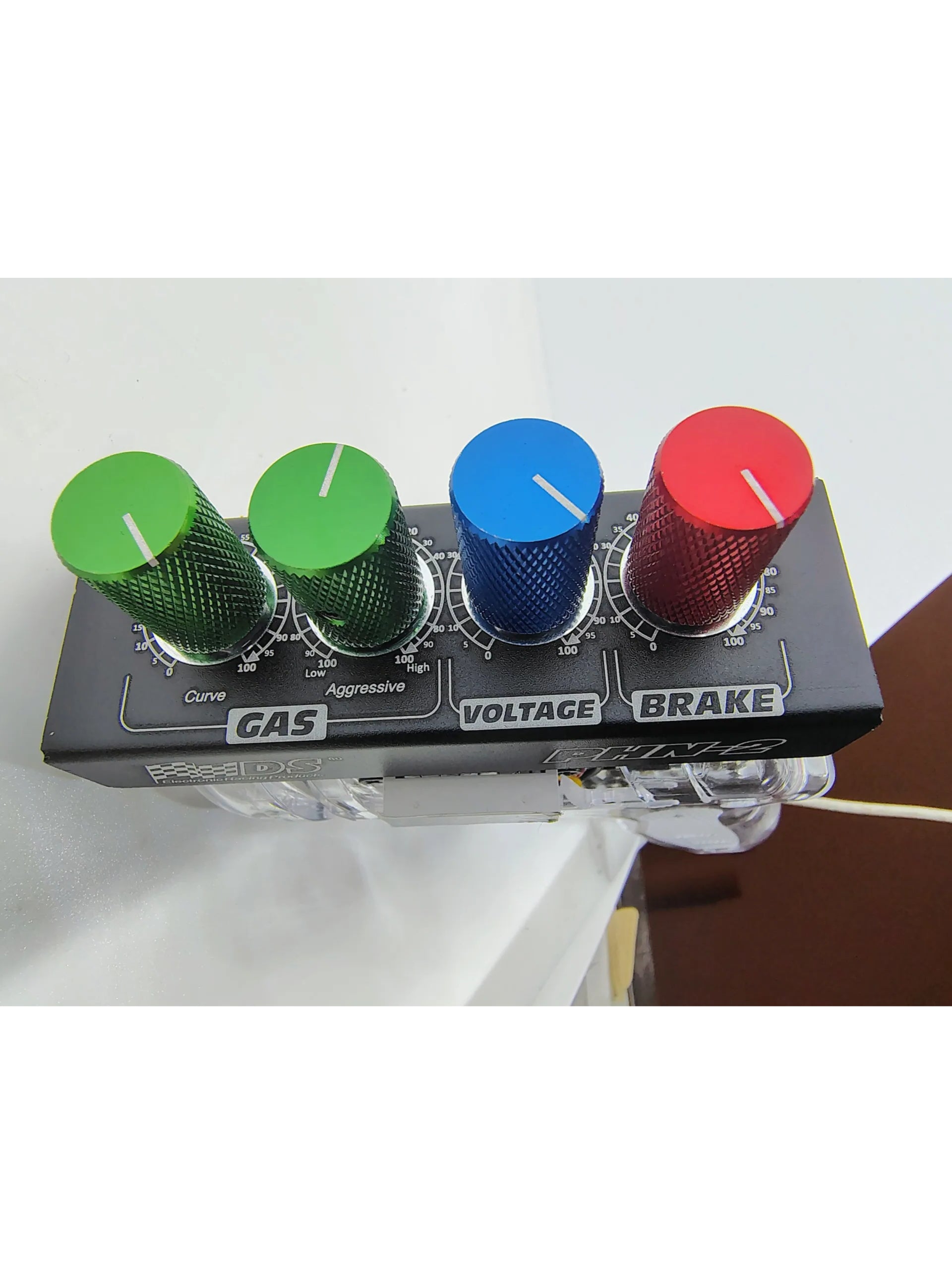

The PHN-02 provides two separate controls for tailoring throttle response:

• Curve – Establishes the basic power-delivery characteristic
• Aggressiveness – Makes the response softer or sharper

Used together, these controls allow the driver to adapt the controller to different motors, cars, traction levels and driving styles.

1/32 & 1/24 Response Modes

A dedicated selector provides response settings intended for 1/32 and 1/24 scale racing.

This gives the PHN-02 a useful starting point when moving between cars with substantially different power and weight characteristics.

Adjustable Braking

The brake control allows braking response to be adjusted to suit the car, track and driver.

Reduce braking for cars that benefit from additional coast or increase it for tighter layouts where stronger stopping response is desirable.

Built-In Voltage Reduction

One of the PHN-02's most useful features is its adjustable voltage-reduction system.

In reduced-voltage mode, the controller can lower the voltage delivered to the car to approximately 70% of the incoming track voltage.

This can be useful for:

• Taming an excessively powerful car
• Racing on technical or low-grip layouts
• Reducing speed for less experienced drivers
• Matching cars with very different motor characteristics
• Running classes that benefit from lower effective voltage

A FULL / RED selector allows the driver to choose between full track voltage and the reduced-voltage setting.

Emergency Brake Button

A side-mounted emergency brake button provides an immediate maximum-stop command independent of the normal progressive brake adjustment.

Adjustable Trigger Length

Trigger travel can be adjusted to suit the driver's hand and preferred trigger movement.

Combined with the ball-bearing mechanism, this helps make the PHN-02 comfortable for extended racing sessions.

Wide Operating Voltage Range

The DS-3510 operates from approximately 8 to 22 volts DC, giving it a very broad range for conventional analog slot car racing.

This makes it suitable for many 1/32 and 1/24 home, club and commercial applications.

Important Motor Compatibility Note

The DS-3510 PHN-02 is intended for conventional brushed slot car motors and is not compatible with brushless motors.

4mm Banana Plugs & Alligator-Clip Compatibility

This listing is for the standard PHN-02 supplied with its factory-installed 4mm banana plugs.

The banana plugs connect directly to compatible banana-jack driver stations. They can also be inserted into many traditional slot car alligator clips, allowing the same controller to be used at tracks with clip-style hookups without cutting or replacing the original connectors.

This makes the factory banana-plug configuration especially versatile for racers who visit different clubs or commercial raceways.

Alligator-clip compatibility depends on the size and design of the track's clips, so verify fit before racing.

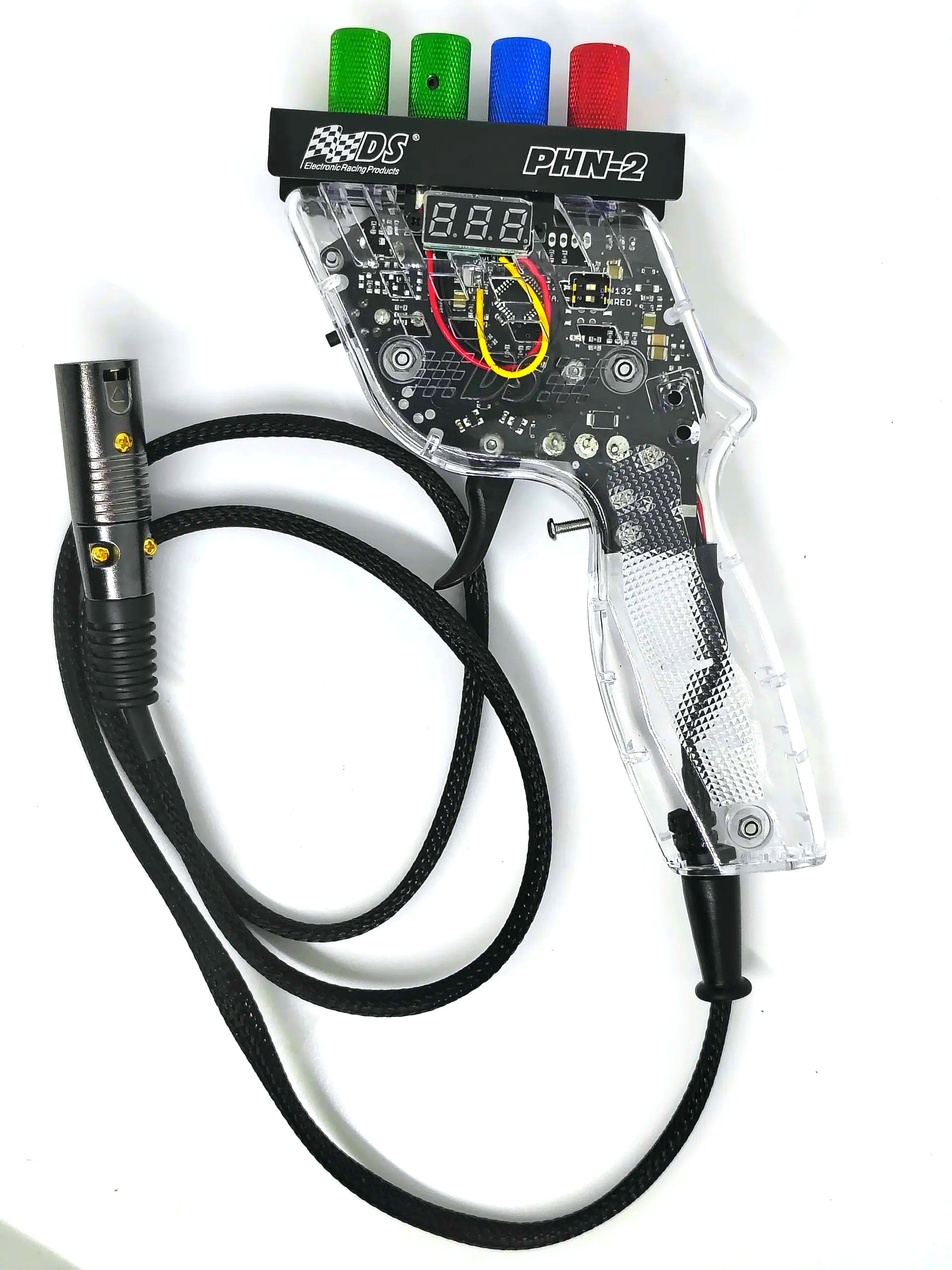

We also offer a separately listed XLR-equipped version for OmniSlotBox systems and other XLR-equipped analog tracks.

Adapters and connector accessories are also available separately in this controller category.

Specifications

• Manufacturer: DS Electronics / Scaleauto
• Model: DS-3510 PHN-02
• Controller Type: Wired Analog Electronic PWM
• Trigger: Contactless Magnetic Sensor
• Trigger Bearings: Ball Bearing
• Throttle Adjustments: Curve + Aggressiveness
• Brake Adjustment: Yes
• Emergency Brake: Yes
• Voltage Reduction: Adjustable to approximately 70% of input
• FULL / RED Voltage Selector: Yes
• 1/32 / 1/24 Response Selector: Yes
• Adjustable Trigger Length: Yes
• Protection: Double Fuse
• Operating Voltage: 8–22V DC
• Motor Type: Conventional Brushed Motors
• Brushless Compatible: No
• Connection: Factory 4mm Banana Plugs
• Additional Connection Compatibility: Fits many traditional alligator clips

Why Choose the PHN-02?

The PHN-02 offers an unusual combination of features in one controller: contactless trigger sensing, PWM control, adjustable throttle curves, braking, selectable scale response and adjustable voltage reduction.

The factory banana plugs add another practical advantage. They work directly with banana-jack tracks and can also be used with many traditional alligator-clip connections, making this version especially useful for racers who compete at several different venues.

Adjust the curve. Adjust the aggression. Adjust the brakes. Adjust the effective voltage—and connect at more than one kind of track.

Service & Support

OmniSlotBox provides assistance with controller selection, track compatibility, connection options and basic troubleshooting. If you're uncertain whether the PHN-02 is appropriate for your track or cars, message us before ordering.
