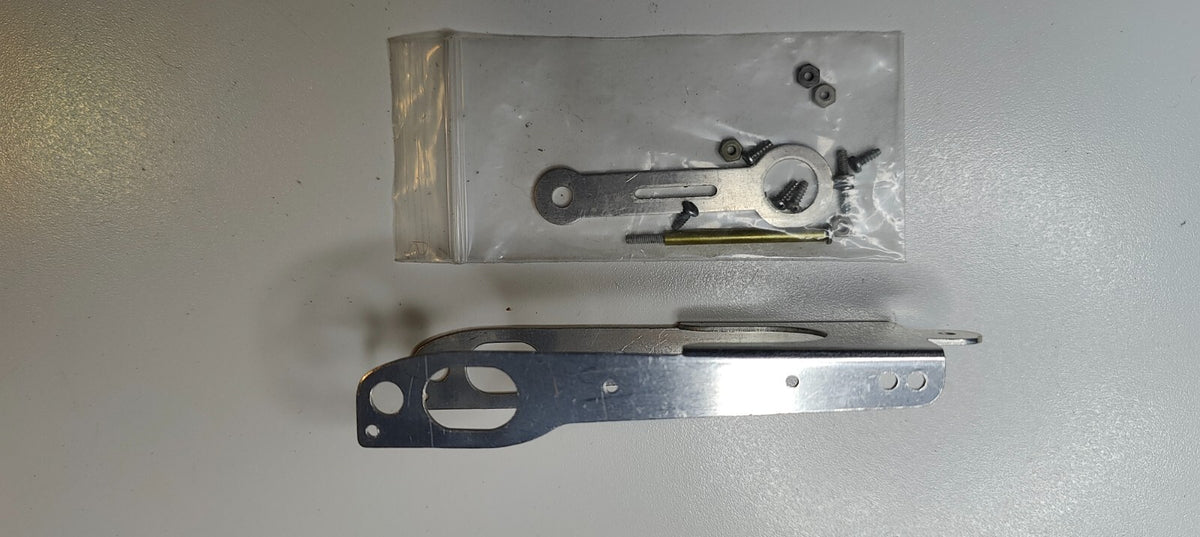

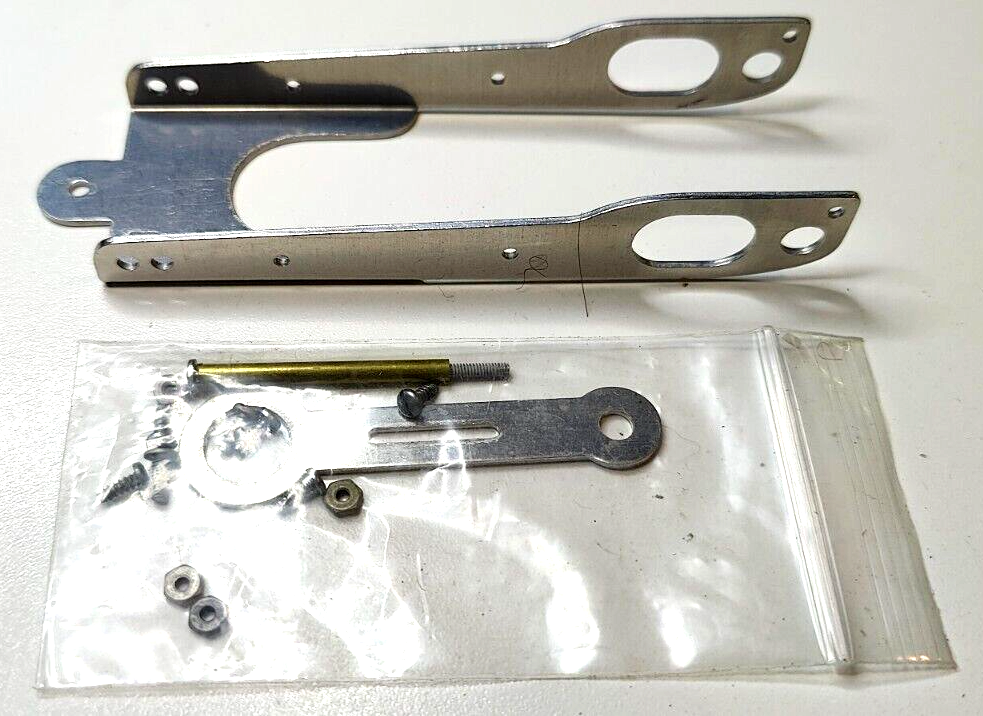

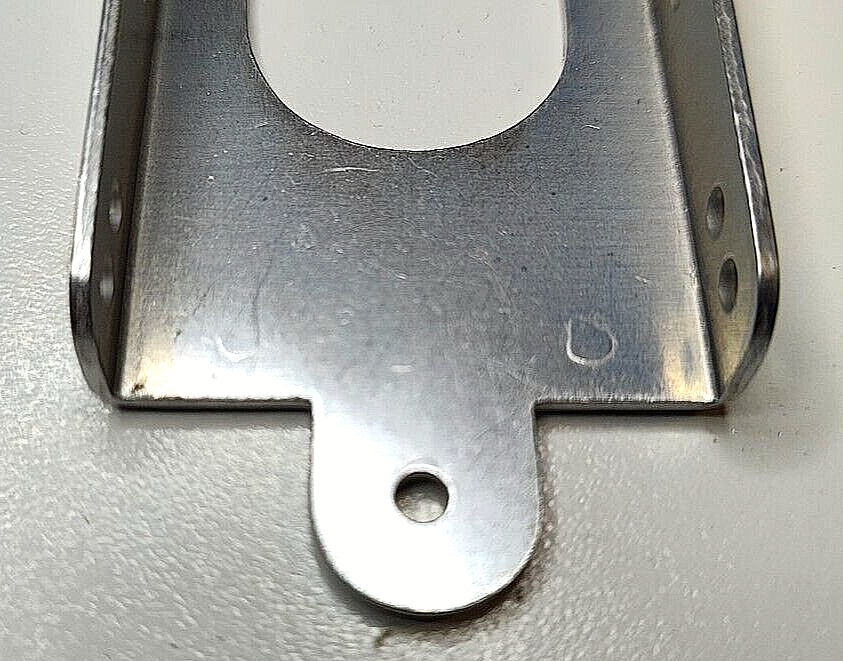

Tradeship WE204 Chassis for Small Vintage 16D Motors – 1965 NOS

Product Overview

Original vintage Tradeship #WE204 slot car chassis designed for small 16D-style motors. This simple, sturdy, lightweight chassis dates from the golden era of slot racing and is well suited to vintage restorations, period builds, or custom projects.

The WE204 features a clever motor-retention system that traps the motor securely between the chassis side rails while providing substantial adjustment for proper gear mesh.

Product Details

• Brand: Tradeship
• Part Number: WE204
• Motor Fit: Small vintage 16D-style motors
• Wheelbase: 3.75" or 4"
• Overall Length: Approximately 5"
• Overall Width: Approximately 1.5"
• Era: 1960s
• Construction: Lightweight stamped metal chassis
• Condition: Vintage new old stock

Motor Mounting & Gear Adjustment

This strong chassis design holds the motor between the side rails and uses a separate retaining piece to secure the can end. This provides more support than relying only on the motor's endbell mounting screws and also allows generous adjustment of gear lash.

• Can be configured for either can-drive or endbell-drive motors
• Gear can be positioned on either side to suit motor rotation and drivetrain layout
• Reversible dogbone-shaped motor retainer accommodates different can bearing styles
• Motor position can be adjusted to obtain proper gear mesh

Guide Mount

The chassis is supplied with a hole for a 1/8" guide shaft. It can easily be drilled for a 1/16" guide shaft if required. We can perform this modification before shipping upon request.

Vintage Packaging

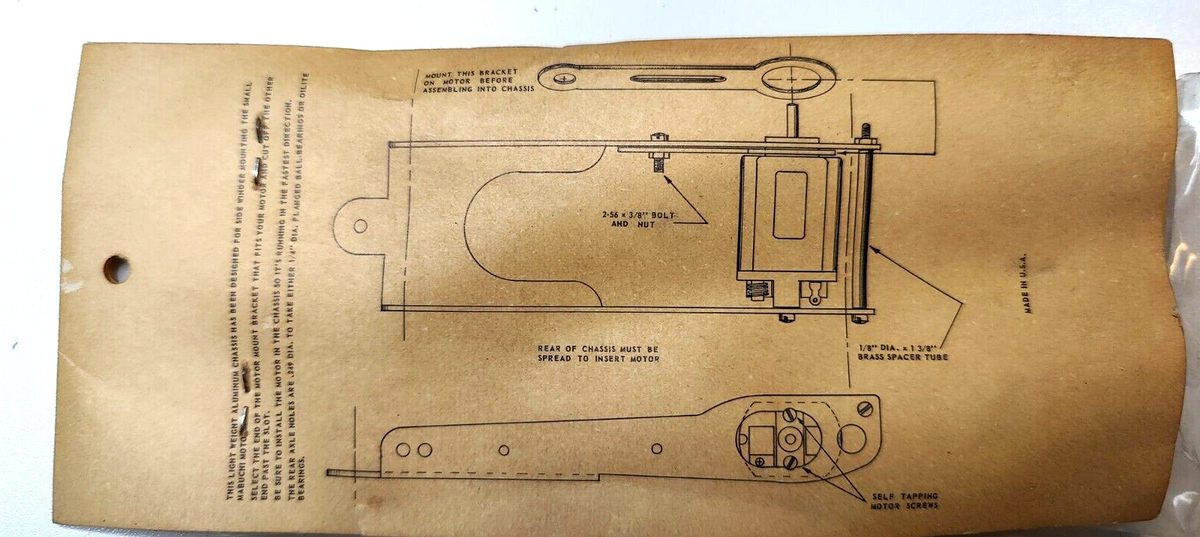

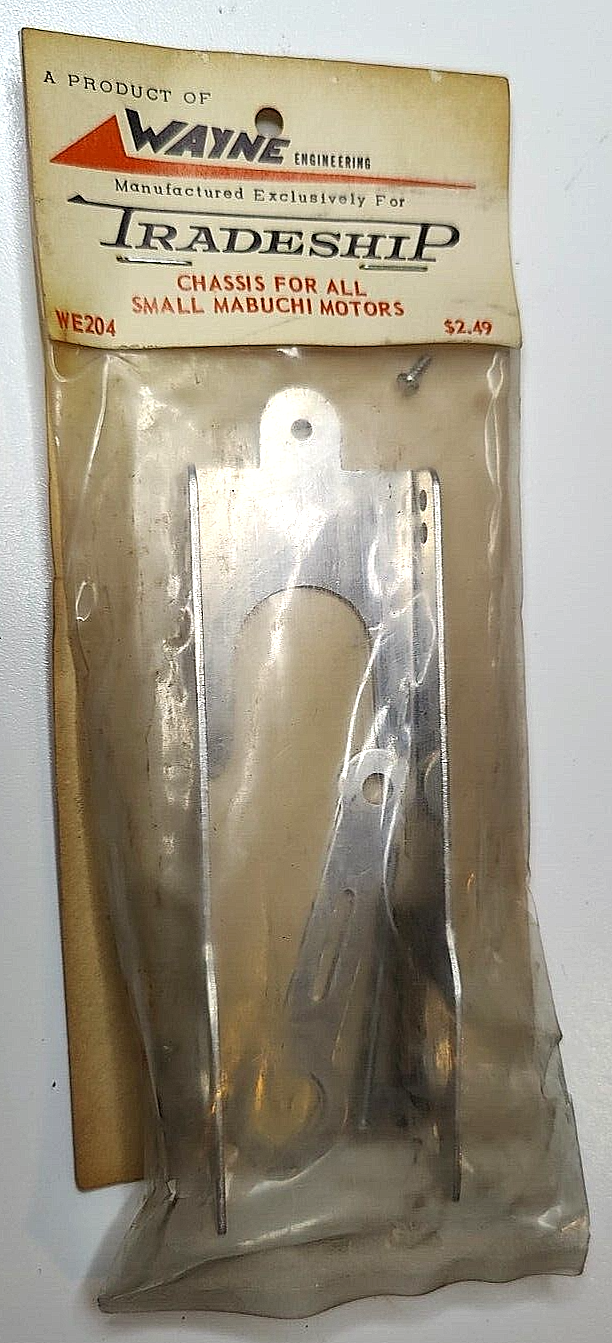

Most examples remain sealed in their original 1965 vintage packaging. On some, the original plastic bag has become brittle and broken with age, but the vintage packaging is still included.

If an original sealed package is important for display or collecting, please contact us before ordering so we can confirm availability.

Ideal For

• Vintage 1960s slot car restorations
• Small 16D motor builds
• Period-correct custom race cars
• Vintage racing projects
• Collectors seeking original NOS chassis and packaging

A simple, versatile, and surprisingly sophisticated vintage chassis design with excellent motor support and drivetrain adjustability.
