DiFalco Genesis DD304 HD30 Electronic Slot Car Controller – Alligator Clips

Premium 30-band electronic control with E.S.P. braking, traction control, Blast full-power relay and traditional alligator-clip connection.

The DiFalco Design Genesis DD304 HD30 is a premium electronic analog controller designed for serious 1/32 slot car racing.

Building on DiFalco's proven HD30 platform, the Genesis combines a 30-band electronic throttle with adjustable sensitivity, adjustable braking, traction control, DiFalco's E.S.P. brake relay, Blast full-power relay, interchangeable resistor networks, a precision ball-bearing trigger and remote heat-sink architecture.

This version is supplied with traditional color-coded alligator clips for direct connection to compatible commercial, club and home track terminals.

Key Features

• 30-Band Electronic Throttle – Fine, progressive throttle control
• Adjustable Sensitivity – Tailor throttle response to the car, track and driver
• Adjustable Traction Control – Fine-tune partial-throttle power delivery
• 25-Ohm Adjustable Brake Control
• E.S.P. Extreme Stopping Power Brake Relay
• Blast Full-Power Relay
• 290-Ohm Plug-In Resistor Network – Standard configuration for a broad range of 1/32 motors
• Interchangeable Resistor Networks – Optional networks allow additional tuning
• Precision Ball-Bearing Trigger
• Remote Heat Sink / Power Module – Moves substantial power-handling hardware away from the handle
• Heavy-Duty 10 AWG Track Leads
• Brake and Transistor Circuit Protection
• Positive Polarity
• Color-Coded Alligator Clips
• Designed and hand-built by DiFalco Design

30-Band Electronic Throttle

The Genesis HD30 uses DiFalco's precision 30-band electronic throttle to provide fine, predictable power progression throughout the trigger range.

The electronic design gives the driver substantially more flexibility than a conventional fixed-resistance controller, allowing the DD304 to be adapted to differences in motors, chassis, tires, traction, track conditions and driving style.

290-Ohm Interchangeable Resistor Network

The DD304 is supplied with a 290-ohm plug-in resistor network suited to a broad range of 1/32 analog slot car motors.

Unlike a conventional controller with a permanently fixed resistance range, the Genesis uses interchangeable resistor network boards. Optional networks are available separately, allowing the controller's basic response range to be changed for different motors and racing applications.

Adjustable Sensitivity

The sensitivity control allows you to change how quickly the car responds to trigger movement.

Use it to soften the response of a powerful or difficult-to-drive car, increase response when more immediate power is desirable, or simply tailor the controller to your preferred driving style.

Adjustable Traction Control

DiFalco's Traction Control regulates power delivery while the trigger is below full throttle.

Reducing partial-throttle output can make it easier to feed power into the car when exiting a corner without overpowering the tires. This can be particularly useful in non-magnet racing, with powerful motors or whenever track grip is limited.

At full trigger position, Traction Control is bypassed so full available track power can be delivered to the car.

25-Ohm Adjustable Braking

The 25-ohm brake rheostat provides a wide range of braking adjustment, allowing braking characteristics to be matched to the car, track layout, traction level and driver's preference.

E.S.P. – Extreme Stopping Power Brake Relay

A major feature of the Genesis DD304 is DiFalco's E.S.P. (Extreme Stopping Power) brake relay.

When full braking is selected, the E.S.P. system provides a short, low-resistance electrical path rather than depending entirely on the conventional trigger-to-brake-post circuit.

The relay is located with the remote power module near the track connection and is electronically activated from the controller. This reduces resistance in the full-brake circuit and provides fast, consistent braking response.

E.S.P. can be switched as required, allowing the driver to combine adjustable braking with a maximum-braking option.

Blast Full-Power Relay

At full throttle, DiFalco's Blast Relay provides a direct high-current power path designed to minimize resistance and voltage loss through the controller.

The result is maximum available power delivery when the trigger reaches full throttle.

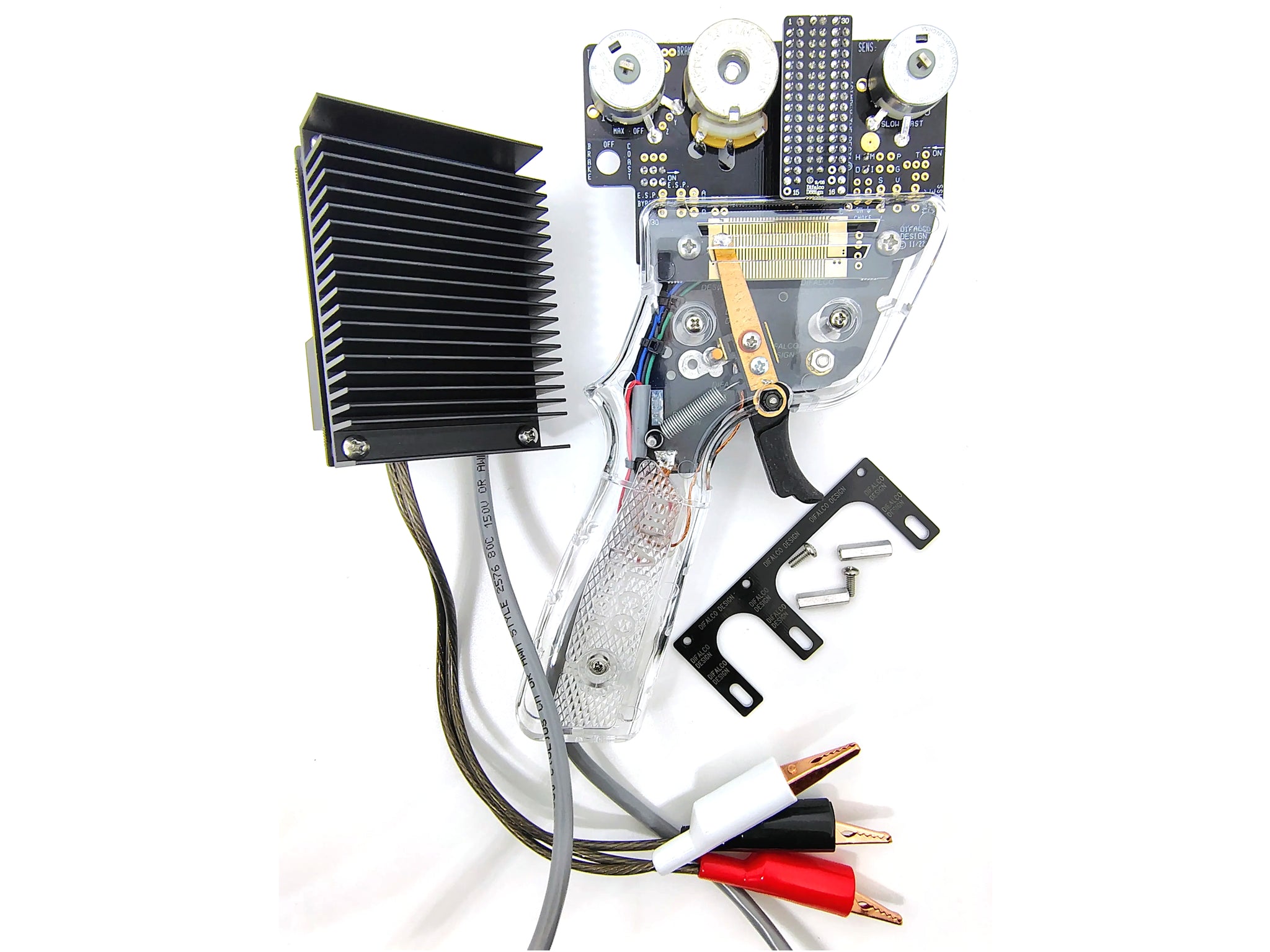

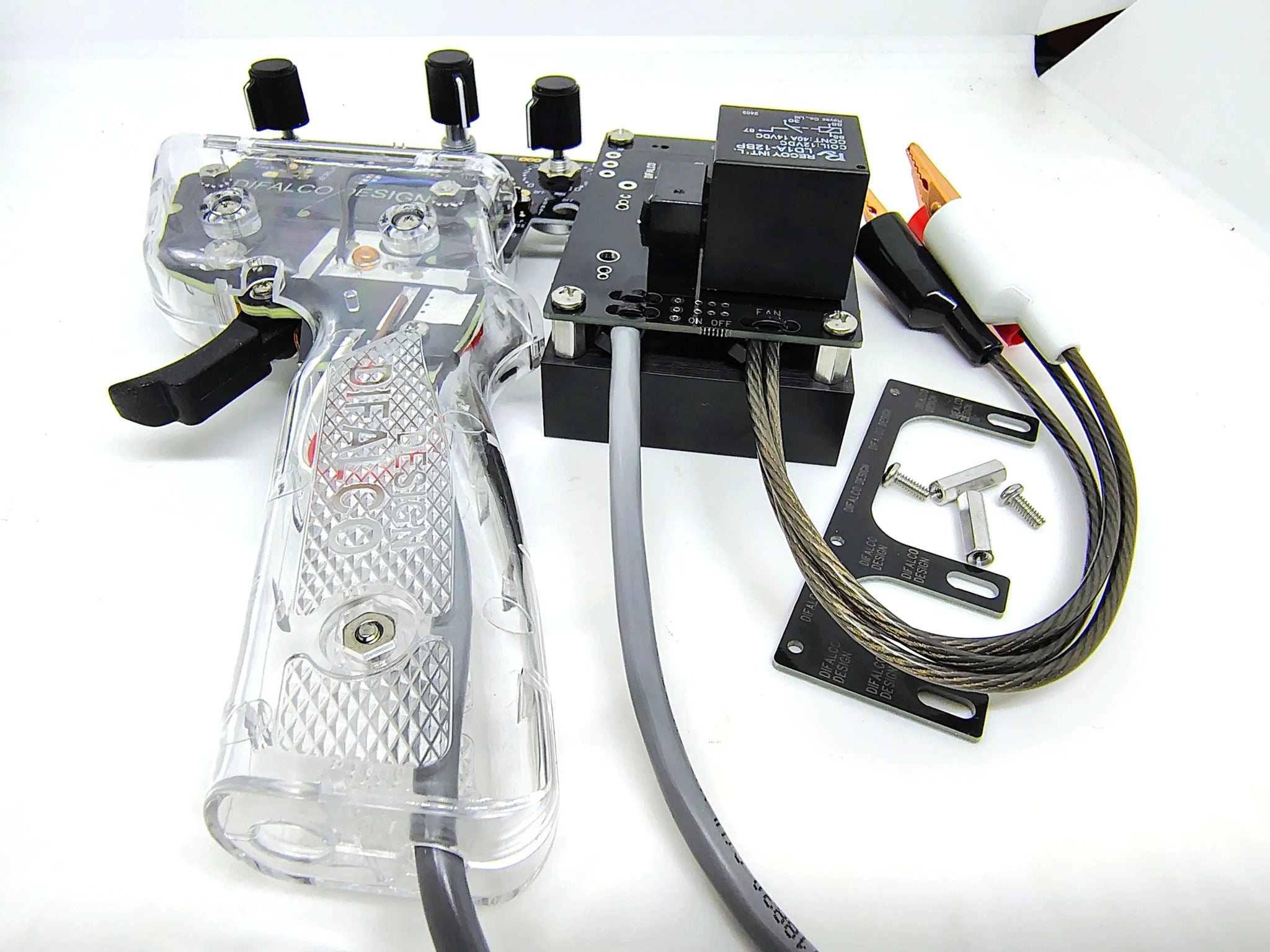

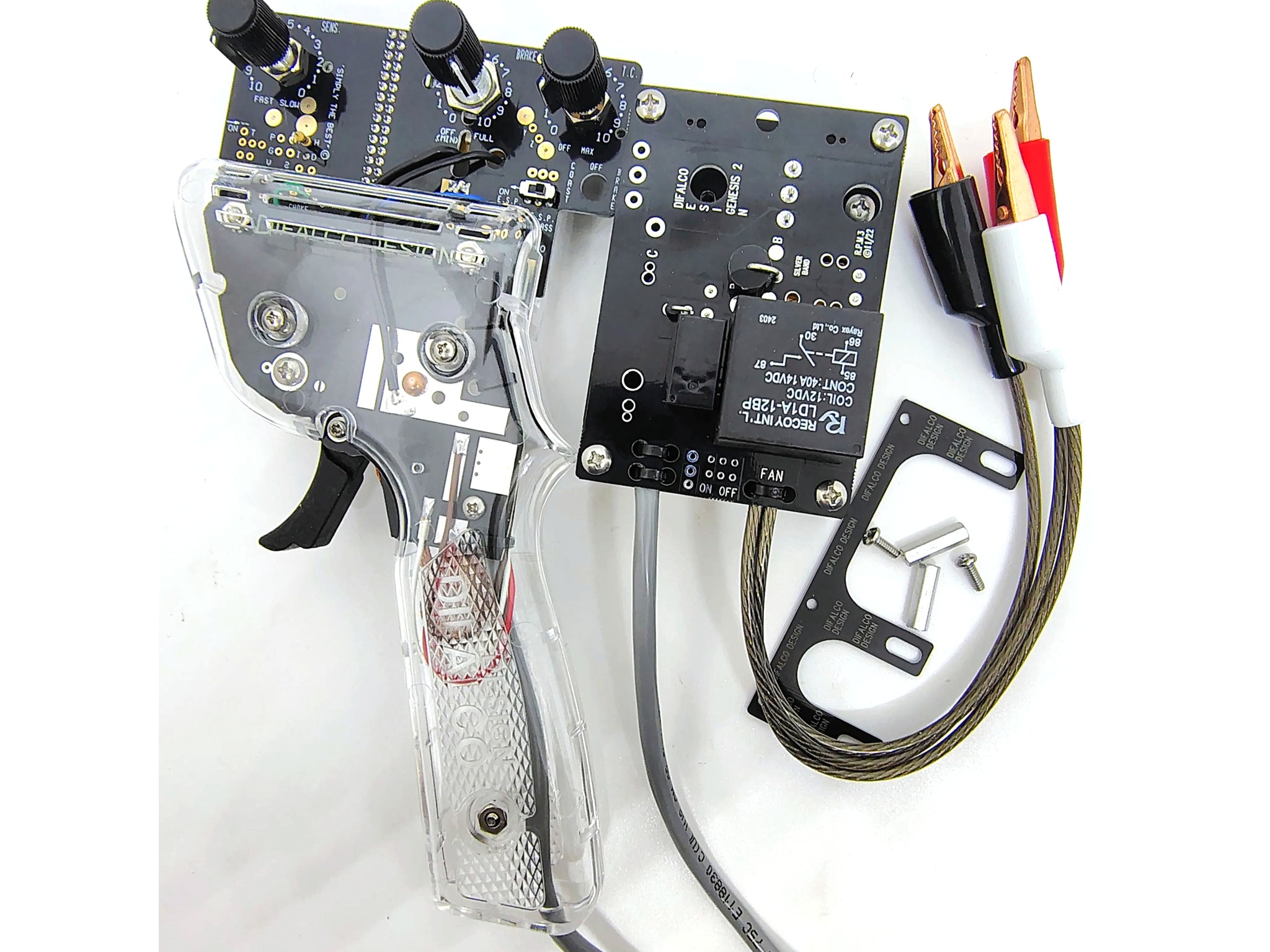

Lightweight Genesis Handle & Remote Power Module

The Genesis uses a two-piece architecture that relocates the substantial heat sink and power electronics from the controller handle to a remote trackside module.

A flexible cable connects the controller to the power module, reducing weight in the driver's hand while keeping the high-current components close to the track connection.

This provides a lighter, better-balanced controller without sacrificing the substantial power-handling hardware of the Genesis design.

Precision Ball-Bearing Trigger

The precision ball-bearing trigger provides smooth movement with reduced friction and side play while helping maintain consistent wiper-button contact with the controller bands.

The result is a smooth, predictable trigger feel particularly appreciated during longer racing sessions.

Heavy-Duty Power Delivery

The Genesis is engineered to minimize unnecessary resistance throughout its high-current power path.

Construction includes a floating power contact, heavy-duty electronic components, substantial internal wiring, 10 AWG stranded copper track leads, the remote heat sink and the Blast full-power relay.

Built-In Circuit Protection

The Genesis incorporates protection for both the brake and transistor circuits, helping protect the controller electronics from electrical faults and overloads.

Premium, Serviceable Construction

DiFalco Genesis controllers use a routed fiberglass frame, stainless-steel hardware, heavy-duty wiring and a nickel-plated circuit board designed to resist corrosion.

The electronic wiper system carries relatively little motor current through the trigger contacts compared with a conventional resistor controller. This greatly reduces contact arcing and wear.

The open-frame construction also makes routine inspection and cleaning straightforward, and many components can be serviced or replaced rather than requiring replacement of the entire controller.

Positive Polarity

The Genesis DD304 HD30 is designed for positive-polarity analog slot car tracks only.

Positive polarity is now common on modern commercial, club, home and OmniSlotBox installations.

If you're uncertain about your track polarity, message us before ordering and we'll help determine compatibility.

Alligator Clips & Other Connection Options

This controller is supplied with traditional color-coded alligator clips for connection to compatible commercial, club and home track terminals.

DiFalco controllers can also be supplied with other connector types. If you prefer our 3-pin XLR connector, banana plugs or another connection, message us before ordering or select the appropriate connector option. You can also have it both ways with one of our separately available adapters.

Handle Colors & Special Orders

Handle color varies according to current inventory. We normally ship an available color so your controller can be supplied without unnecessary delay.

If you want a particular handle color, message us before ordering. A controller can be built specifically for your order by DiFalco Design when the requested color is available. Additional lead time may be required.

Availability

DiFalco controllers are individually hand-built in relatively small quantities. We stock popular models whenever possible, but demand can occasionally exceed available inventory.

If a controller must be built to order, typical lead time may be approximately 3–4 weeks.

Specifications

• Manufacturer: DiFalco Design
• Model: Genesis DD304 HD30
• Controller Type: Electronic Analog
• Throttle: 30-Band
• Resistor Network: 290 Ohm, interchangeable
• Adjustable Sensitivity: Yes
• Traction Control: Yes
• Adjustable Brake: Yes, 25 Ohm
• E.S.P. Brake Relay: Yes
• Blast Full-Power Relay: Yes
• Ball-Bearing Trigger: Yes
• Heat Sink: Remote power-module design
• Track Leads: Heavy-duty 10 AWG
• Polarity: Positive Only
• Primary Application: 1/32 Analog Racing
• Connection: Color-Coded Alligator Clips

Why Choose the Genesis DD304?

The Genesis DD304 combines many of DiFalco's premium controller technologies in one package:

• 30-band electronic throttle
• Adjustable sensitivity
• Adjustable traction control
• 25-ohm adjustable braking
• E.S.P. maximum-braking relay
• Blast full-power relay
• Interchangeable resistor networks
• Ball-bearing trigger
• Lightweight handle with remote power electronics
• Heavy-duty 10 AWG track wiring
• Serviceable, race-oriented construction

For racers who want extensive adjustment with direct, easy-to-understand controls, the DD304 provides sophisticated electronic control without requiring complicated menus or programming.

Service & Support

DiFalco controllers are designed to be maintained and repaired rather than treated as disposable electronics. Replacement components are available for many service items.

OmniSlotBox provides assistance with controller selection, compatibility, setup and basic troubleshooting. Factory service and replacement parts are also available through DiFalco Design when required.

30-band precision, E.S.P. braking, traction control and maximum-power delivery with traditional alligator-clip connection.
