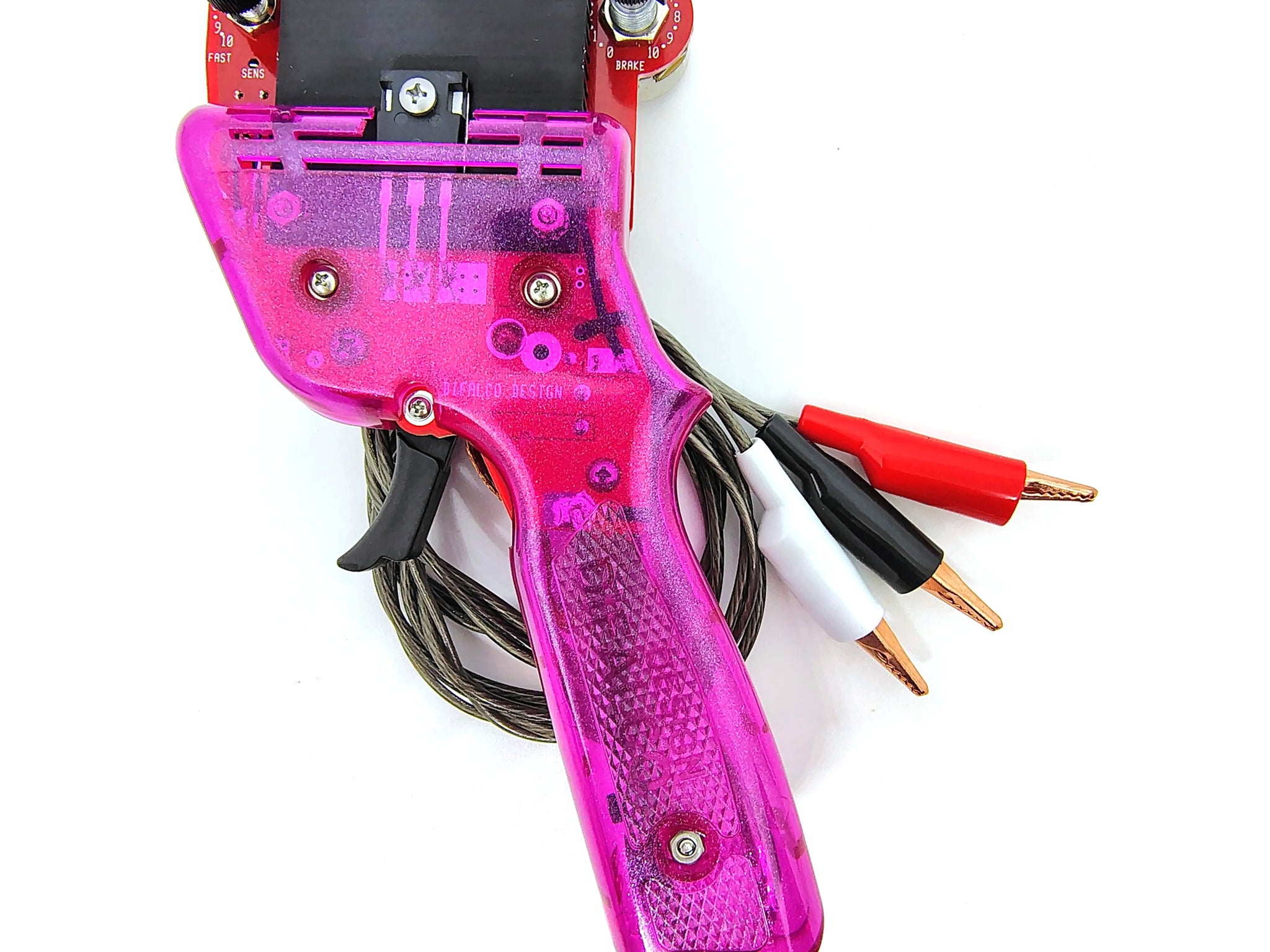

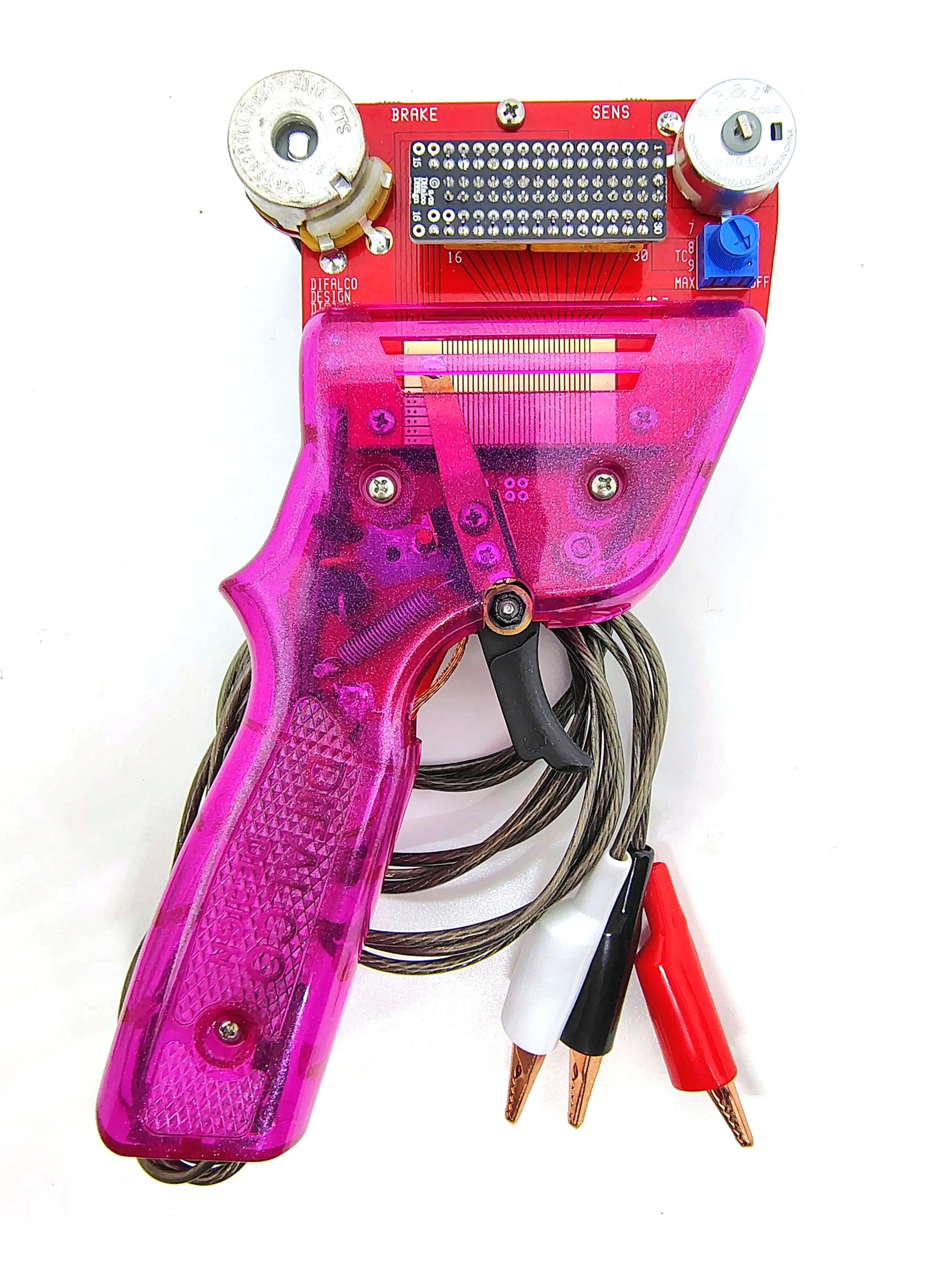

DiFalco DD312 Neo Hybrid Electronic Slot Car Controller – Alligator Clips

30-band precision with the versatility to race virtually any 1/32 car plus many popular 1/24 classes.

The DiFalco Design DD312 Neo Hybrid bridges the gap between DiFalco's 1/32 Neo controllers and its more powerful commercial-raceway models. A larger heat sink and 10-ohm adjustable brake control give it the additional capacity needed for many mild 1/24 applications while retaining the smooth response and broad motor compatibility that make the Neo series so versatile.

With a 30-band electronic throttle, adjustable sensitivity, adjustable traction control, interchangeable resistor networks and precision ball-bearing trigger, the DD312 gives serious racers extensive control without unnecessary complexity.

This version is supplied with color-coded alligator clips for direct connection to compatible commercial, club and home track terminals.

Key Features

• 30-Band Electronic Throttle – Smooth, precise power control
• Hybrid 1/32 & 1/24 Capability – Virtually all 1/32 cars plus many mild 1/24 applications
• Adjustable Sensitivity – Tailor throttle response to the car, track and driver
• Adjustable Traction Control – Fine-tune partial-throttle power delivery
• 10-Ohm Adjustable Brake Control
• 290-Ohm Plug-In Resistor Network
• Interchangeable Resistor Networks – Optional networks allow additional tuning
• Precision Ball-Bearing Trigger
• Larger Heat Sink – Increased power-handling capacity
• Positive Polarity
• Color-Coded Alligator Clips
• Designed and hand-built by DiFalco Design

30-Band Electronic Throttle

The DD312 uses DiFalco's precision 30-band electronic throttle for smooth, progressive power delivery throughout the trigger range.

Compared with conventional resistor controllers, the electronic design provides finer throttle resolution and allows the controller to work effectively with a much broader range of motors.

Hybrid 1/32 & 1/24 Performance

The DD312 earns its Hybrid name by combining the broad compatibility needed for 1/32 racing with additional power-handling capability for many popular 1/24 applications.

It is designed for virtually all conventional 1/32 analog slot car motors and many mild 1/24 motors, including:

• 16D
• Hawk
• Similar mild commercial-racing motors

The larger heat sink and upgraded braking capability make the DD312 particularly attractive to racers who compete in both 1/32 and mild 1/24 classes and would rather use one familiar controller for both.

10-Ohm Adjustable Braking

The integrated 10-ohm brake potentiometer provides a broad range of braking adjustment.

Braking can be fine-tuned to suit the car, motor, track layout, traction level and driver's preference.

Adjustable Sensitivity

The sensitivity control changes the controller's throttle response, allowing you to adapt the DD312 to different motors, cars and track conditions.

Response can be softened for a powerful or difficult-to-drive car or increased when a more immediate throttle response is desirable.

Adjustable Traction Control

DiFalco's Traction Control regulates the amount of power delivered while the trigger is below full throttle.

This can make it easier to apply power when exiting corners without overpowering the tires, particularly with high-powered cars or on lower-grip tracks.

At full trigger position, Traction Control is automatically bypassed so maximum available track power is delivered to the car.

Interchangeable Resistor Networks

The DD312 uses DiFalco's removable resistor-network system. The supplied 290-ohm network is suited to a broad range of 1/32 applications.

Optional resistor networks are available separately, allowing racers to alter the controller's basic response range for different motors, cars and racing classes.

This provides another level of adaptability beyond the controller's external sensitivity and traction-control adjustments.

Precision Ball-Bearing Trigger

The DD312 features DiFalco's precision ball-bearing trigger with a threaded adjustable pivot pin.

Benefits include:

• Exceptionally smooth trigger movement
• Reduced friction
• Minimal trigger side play
• Consistent wiper-button contact
• Adjustability to maintain precise trigger feel after extensive use

Professional Construction

DiFalco Neo controllers are built using race-oriented components including:

• Fiberglass controller frame
• Large floating brass power contact
• Heavy-duty wiring
• Stainless-steel hardware
• Nickel-plated circuit board for corrosion resistance
• Large heat sink for increased power handling

Comfortable Handle

The DD312 uses the same basic comfortable handle design found on DiFalco's premium Genesis controllers, providing a familiar grip and good ergonomics during extended racing sessions.

Positive Polarity

The DD312 Neo Hybrid is designed for positive-polarity analog slot car tracks only.

Positive polarity is now the common standard on modern commercial and club raceways.

If you're uncertain about your track polarity, message us before ordering and we'll help determine compatibility.

Alligator Clips & Other Connection Options

This controller is supplied with color-coded alligator clips for direct connection to compatible commercial, club and home track terminals.

DiFalco controllers can also be supplied with other connector types. If you prefer our 3-pin XLR connector, banana plugs or another connection, message us before ordering or select the appropriate connector option. You can also have it both ways with one of our separately available adapters.

Handle Colors & Special Orders

Handle colors vary according to current inventory. Controllers in stock are normally shipped immediately in an available color.

If you would like a particular handle color, note your preference when ordering. If that color is not currently in our inventory, your controller can be custom built by DiFalco Design and shipped directly to you. Additional lead time will apply.

Availability

We do our best to keep the DiFalco controllers we offer in stock, but during busy periods we may occasionally sell out.

DiFalco Design controllers are individually fabricated in relatively small quantities. When a controller must be built to order, current lead time is approximately 3–4 weeks from the order date.

If timing is important, message us before ordering and we'll be happy to confirm current availability.

Easy Maintenance & Serviceable Design

The open-frame design makes routine inspection and cleaning straightforward. DiFalco controllers are designed to be maintained and repaired rather than treated as disposable electronics.

Many common service components are inexpensive and replaceable, helping make the DD312 a controller capable of providing years of racing service.

Specifications

• Manufacturer: DiFalco Design
• Model: DD312 Neo Hybrid
• Controller Type: Electronic Analog
• Throttle: 30-Band
• Primary Applications: 1/32 and mild 1/24 Analog Racing
• Resistor Network: 290 Ohm, interchangeable
• Adjustable Sensitivity: Yes
• Traction Control: Yes
• Adjustable Brake: Yes, 10 Ohm
• Ball-Bearing Trigger: Yes
• Heat Sink: Enlarged Neo heat sink
• Polarity: Positive Only
• Connection: Color-Coded Alligator Clips

Why Choose the DD312 Neo Hybrid?

The DD312 is particularly well suited to the racer who wants one high-quality controller for a broad range of analog racing.

• Smooth 30-band electronic throttle
• Virtually universal 1/32 motor compatibility
• Capability for many mild 1/24 motors
• Adjustable sensitivity
• Adjustable traction control
• 10-ohm adjustable braking
• Interchangeable resistor networks
• Precision ball-bearing trigger
• Heavy-duty, serviceable construction

For racers who move between 1/32 club or home racing and mild 1/24 commercial classes, the DD312 Neo Hybrid provides an unusually versatile combination of precision, power capacity and straightforward adjustment.

Service & Support

OmniSlotBox provides assistance with controller selection, compatibility, setup and basic troubleshooting. Factory service and replacement parts are also available through DiFalco Design when required.

One controller. Two scales. 30-band precision with traditional alligator-clip track connection.
