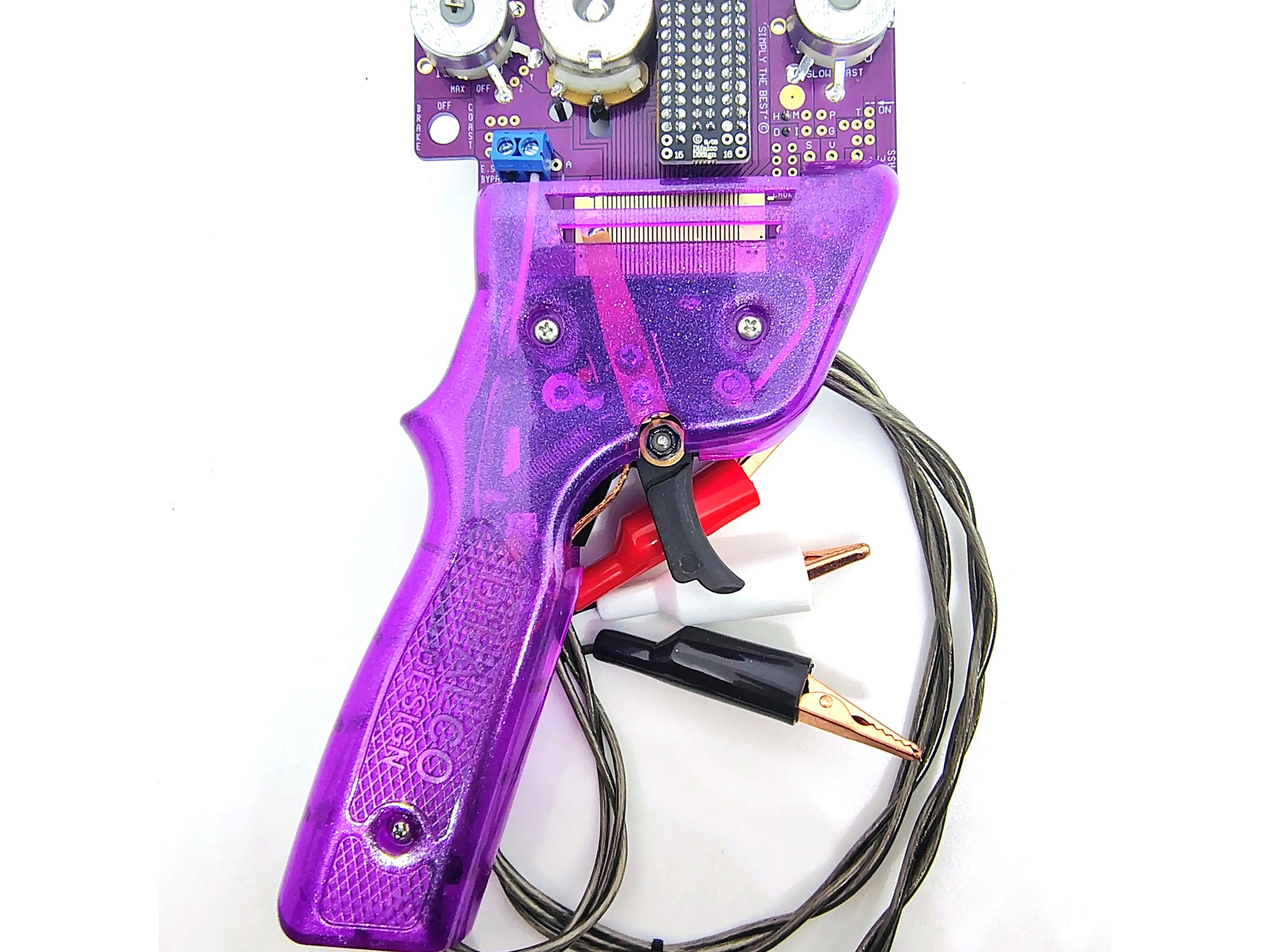

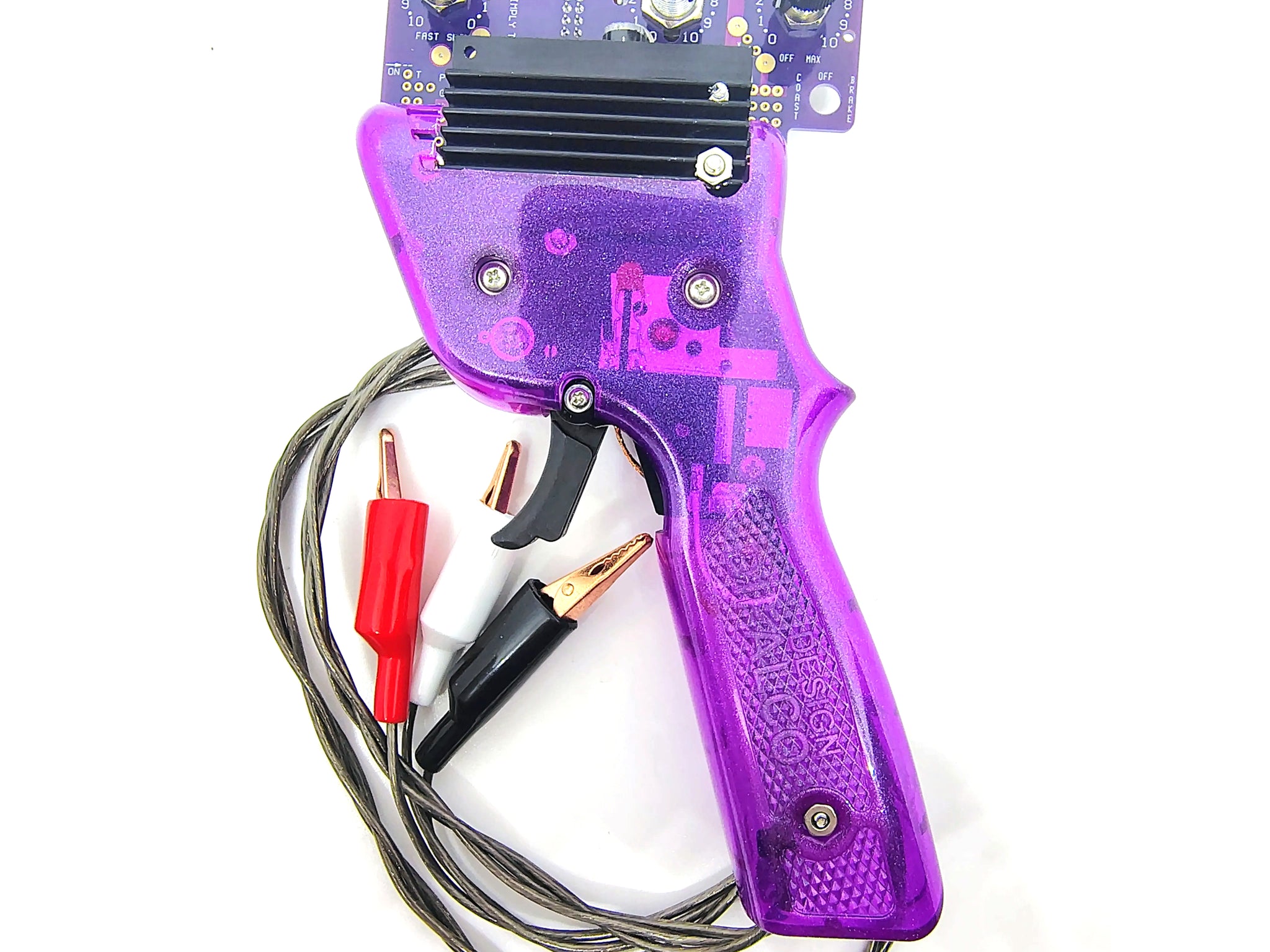

DiFalco DD302 Neo 30-Band 1/32 Slot Car Controller – Traction Control – Alligator Clips

30-band precision, adjustable braking, sensitivity and traction control in DiFalco's versatile Neo platform.

The DiFalco Design DD302 Neo is a high-performance electronic controller for serious 1/32 analog slot car racing. It brings many of the adjustments and design features of DiFalco's premium Genesis controllers to the more affordable Neo series.

Building on the proven Neo 30-band platform, the DD302 adds adjustable traction control, giving racers another valuable tool for matching power delivery to the car, track conditions and driving style.

This version is supplied with color-coded alligator clips for traditional commercial, club and home-track connections.

Key Features

• 30-Band Electronic Throttle – Smooth, precise throttle response
• Adjustable Sensitivity – Fine-tune initial throttle response
• Adjustable Braking – Match braking characteristics to your car and track
• Adjustable Traction Control – Regulate partial-throttle power delivery
• Full Power at Full Throttle – Traction control is bypassed at full trigger
• Interchangeable Resistor Network – Additional networks available separately
• Precision Ball-Bearing Trigger
• Dual Polarity – Easily configurable by the user
• Heavy-Duty, Serviceable Construction
• Color-Coded Alligator Clips

30-Band Electronic Throttle

DiFalco's 30-band electronic throttle provides fine control throughout the trigger range for smooth acceleration, precise corner control and consistent power delivery.

Unlike conventional resistor controllers that are optimized for a relatively narrow range of motor characteristics, the DD302's electronic design works effectively with virtually any conventional 1/32 analog slot car motor.

Adjustable Sensitivity

The sensitivity control allows the throttle response to be tailored to different motors, cars, track conditions and driving styles.

Response can be softened for powerful or difficult-to-drive cars or increased when a more immediate throttle response is preferred.

Adjustable Braking

Adjustable braking lets you change the amount of dynamic braking to suit the car and circuit.

Increase braking for tight technical layouts or reduce it for flowing tracks and cars that naturally slow quickly when the throttle is released.

Adjustable Traction Control

The DD302 adds DiFalco's Traction Control system to the Neo platform.

Traction Control regulates power delivery while the trigger is below full throttle. This can help reduce wheelspin and make power application easier to manage when accelerating out of corners, particularly with powerful cars or on lower-grip tracks.

At full trigger position, Traction Control is automatically bypassed so the car receives full available track power.

Interchangeable Resistor Network

Like DiFalco's higher-end Genesis 1/32 controllers, the DD302 uses a plug-in resistor network.

Optional resistor networks are available separately, allowing racers to alter the controller's basic response range for particular motors, cars, track conditions or personal preferences.

Precision Ball-Bearing Trigger

The heavy-duty ball-bearing trigger provides exceptionally smooth, precise movement with very little friction.

Unlike conventional oilite trigger bushings, the bearing system resists wear and side play that can eventually affect wiper-button contact.

A threaded trigger pivot allows adjustment to maintain precise trigger movement and minimize unwanted trigger "slop" even after extensive use.

Dual Polarity

The DD302 is normally supplied configured for positive-polarity tracks, but the polarity can be changed by the user with a small screwdriver.

This makes the DD302 particularly useful for racers who compete at tracks using different wiring standards.

Professional Construction

DiFalco Neo controllers are built for serious racing and long service life using quality components including:

• Fiberglass controller frame
• Large floating brass power contact
• Heavy-duty wiring
• Stainless-steel hardware
• Nickel-plated circuit board for corrosion resistance

Comfortable Handle

The DD302 uses DiFalco's sturdy, comfortable handle design, providing a familiar grip and good ergonomics during extended racing sessions.

Alligator Clips & Other Connection Options

This controller is supplied with color-coded alligator clips for direct connection to compatible commercial, club and home track terminals.

DiFalco controllers can also be supplied with other connector types. If you prefer our 3-pin XLR connector, banana plugs or another connection, message us before ordering or select the appropriate connector option. You can also have it both ways with one of our separately available adapters.

Handle Colors & Special Orders

Handle colors vary according to current inventory. Controllers in stock are normally shipped immediately in an available color.

If you would like a particular handle color, note your preference when ordering. If that color is not currently in our inventory, your controller can be custom built by DiFalco Design and shipped directly to you. Additional lead time will apply.

Availability

We do our best to keep the DiFalco controllers we offer in stock, but during busy periods we may occasionally sell out.

DiFalco Design controllers are individually fabricated in relatively small quantities. When a controller must be built to order, current lead time is approximately 3–4 weeks from the order date.

If timing is important, message us before ordering and we'll be happy to confirm current availability.

Easy Maintenance & Serviceable Design

The DD302's open-frame construction makes routine inspection and cleaning straightforward. DiFalco controllers are designed to be maintained and repaired rather than treated as disposable electronics.

Most common problems can be diagnosed and repaired using readily available, inexpensive replacement parts. Maintenance and troubleshooting information is available for owners.

Specifications

• Manufacturer: DiFalco Design
• Model: DD302 Neo
• Controller Type: Electronic Analog
• Primary Application: 1/32 Analog Slot Cars
• Throttle: 30-Band
• Adjustable Sensitivity: Yes
• Adjustable Brake: Yes
• Traction Control: Yes
• Interchangeable Resistor Network: Yes
• Ball-Bearing Trigger: Yes
• Polarity: Dual Polarity / User Configurable
• Connection: Color-Coded Alligator Clips

Why Choose the DD302 Neo?

The DD302 is an excellent choice for the 1/32 racer who wants substantially more tuning capability than a basic electronic controller without stepping all the way up to DiFalco's Genesis series.

• Smooth 30-band electronic throttle
• Broad 1/32 motor compatibility
• Adjustable sensitivity
• Adjustable braking
• Adjustable traction control
• Interchangeable resistor networks
• Precision ball-bearing trigger
• Dual-polarity capability
• Durable, serviceable construction

Service & Support

OmniSlotBox provides assistance with controller selection, compatibility, setup and basic troubleshooting. Factory service and replacement parts are also available through DiFalco Design when required.

A highly adjustable 30-band controller for racers who want precise control without moving all the way to the Genesis price level.
