JK Direct Drive 1/32 Slot Car

True Analog • Gearless Direct Drive • Lightweight Steel Racing Chassis

The JK Direct Drive is a serious 1/32 analog race car built around an exceptionally simple and efficient drivetrain. Instead of using a conventional pinion and spur gear, the motor directly drives the rear axle.

The result is an unusually smooth, quiet, and responsive drivetrain with fewer moving parts and virtually no conventional gear maintenance. Combined with a lightweight steel chassis and wide foam rear tires, the Direct Drive delivers impressive speed while rewarding a smooth, precise driving style.

Each car is supplied with the lightweight racing body shown in the photographs for that individual listing.

🏁 Why Direct Drive?

Removing the conventional gear train reduces drivetrain complexity and eliminates gear mesh as a tuning variable. Power delivery is immediate and exceptionally smooth, giving the car a very different feel from a traditional anglewinder or sidewinder chassis.

• No conventional pinion or spur gear
• Very smooth and quiet operation
• Minimal drivetrain maintenance
• Low rotating mass
• Excellent acceleration and responsiveness
• Rewards smooth braking and momentum through the corners

🏁 Exclusive OmniSlotBox Race Prep & Custom Tuning

Every JK Direct Drive car we sell is personally race-prepped by Jim Cunningham before shipment. The basic preparation is the same work we perform on our Cheetah anglewinders where it applies, but the Direct Drive chassis does not require the anglewinder-specific pinion movement, motor-shaft trimming or rear-axle spacing correction.

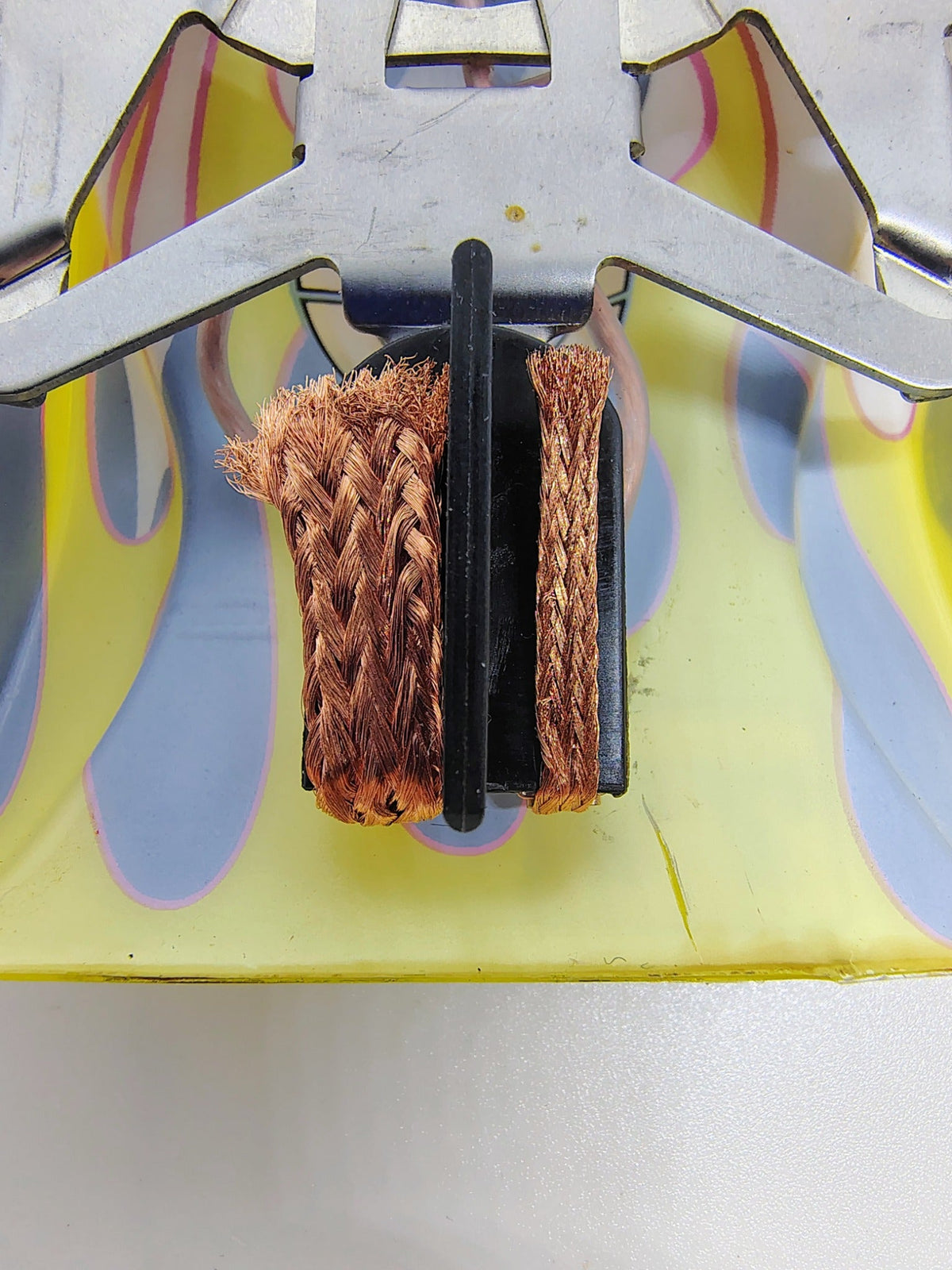

Thin, Narrow Guide Braid

We replace the thick, wide factory braid with a finer, narrower braid. Because the front of these cars rides primarily on the guide and braid rather than on the front wheels, braid thickness and width directly affect friction, guide depth and chassis height.

• Less friction on plastic track: Wide braid can rub on the plastic beside the conductor rails. Narrow braid keeps more of the contact area on the metal rail.
• More consistent electrical pickup: The finer braid conforms closely to the rail surface and maintains a more useful contact patch.
• Deeper guide position: Thinner braid allows the guide to sit farther into the slot.
• Lower front ride height: Because the guide carries the front of the car, thinner braid can lower the chassis and center of gravity.

Chassis Wear Indicator & Electrical Protection

We apply yellow wear tape at the low point of the chassis. As the foam rear tires wear and the chassis moves closer to the rails, the tape provides an easy visual warning and helps insulate the chassis from accidental rail contact and arcing.

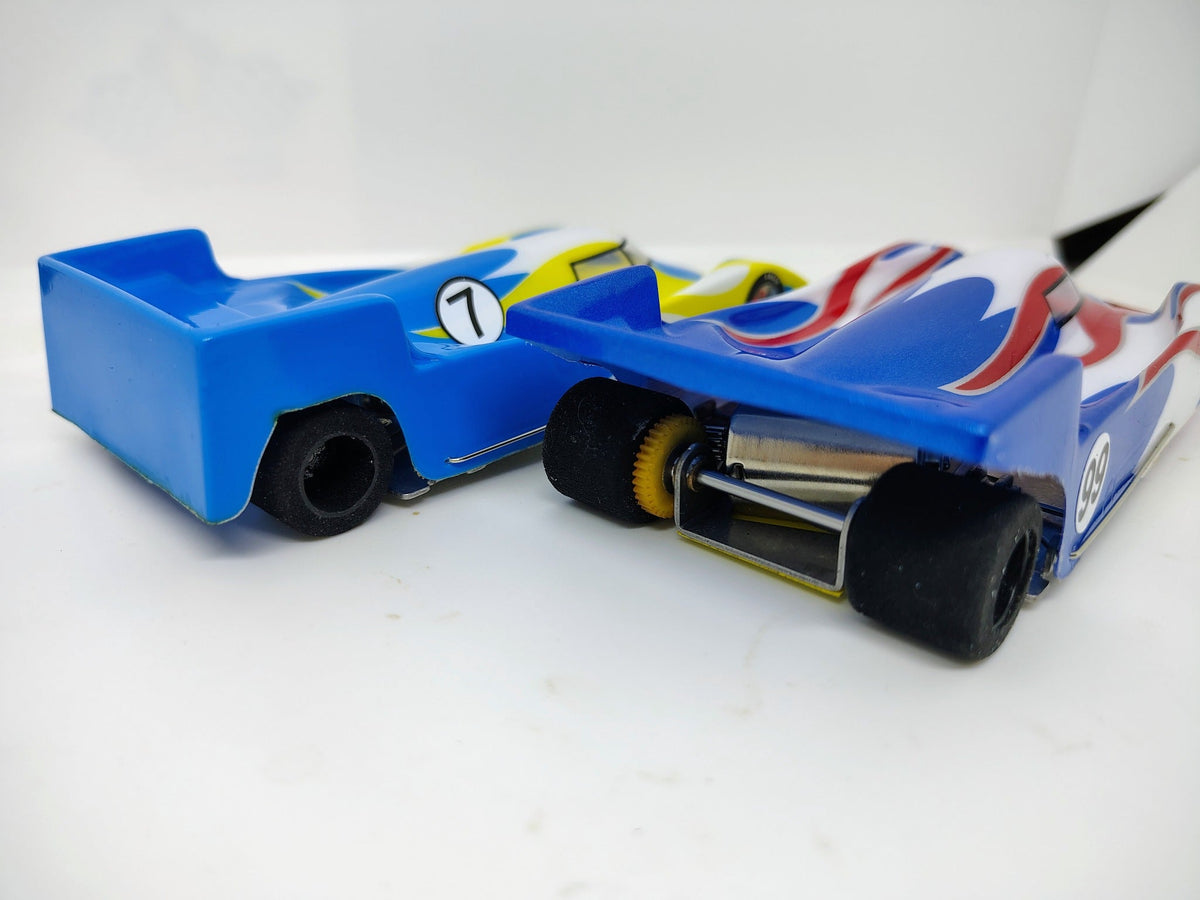

Rear Body Trim

On the lightweight sports/prototype bodies, we trim excess rear body overhang to improve the aerodynamic profile and give the car a cleaner racing shape. Removing the extra overhang also reduces the chance that the flexible body will tuck over a rear tire during a crash and bind the wheel.

The result is not simply a stock JK Direct Drive car taken out of the package. It is inspected, adjusted and race-prepped at OmniSlotBox using what we have learned from running these cars on our own tracks.

🔧 Specifications

• Scale: 1/32
• Drive: Direct drive — no conventional pinion or spur gear
• Chassis: Lightweight multi-part steel racing chassis
• Approximate Weight: 86 grams
• Rear Tires: Wide foam racing tires
• Guide: Full-size commercial-style guide
• Body: Lightweight racing body as shown in the individual product photographs

🔌 Track Compatibility

Designed for true analog operation and suitable for:

• Routed wood racing tracks
• Carrera Evolution and Exclusiv analog layouts
• OmniSlotBox-equipped Carrera tracks operating in analog mode

Important: The full-size commercial-style guide may require trimming or adjustment for some Carrera layouts. It is generally too deep for standard Scalextric track without modification.

⚡ Power Requirements

For serious racing, we recommend a regulated power supply with approximately 3 amps or more available per lane. These are high-performance analog cars and perform best with a power system capable of supplying adequate current without significant voltage drop.

🛞 Foam Tire Performance

The wide foam rear tires provide excellent mechanical grip without depending on strong magnetic downforce. Foam tires perform best on a clean, properly prepared racing surface. Track Honey or a similar foam-tire traction treatment can be used where appropriate for the track surface.

🏎️ Jim's Racer Perspective

On our 60-foot Grand Prix Carrera layout, JK Direct Drive cars have run more than a full second per lap faster than the standard Carrera cars we use for comparison.

They also demand a different driving technique from the JK Cheetah anglewinders. The Direct Drive responds particularly well to smooth controller inputs, earlier braking, and carrying momentum through the corners. Once you adapt to the car, the combination of low weight, foam-tire grip, and the remarkably smooth drivetrain makes it a very satisfying car to race.

🏆 Built to Race

This is not simply a faster version of a conventional RTR slot car. The JK Direct Drive is a lightweight competition-style analog racer designed for drivers who want to explore the performance available from a properly engineered chassis, foam tires, and a true analog power system.
