OmniSlotBox Presents: JK Cheetah 1/32 Anglewinder Steel Slot Car Unleash Next-Level Performance The JK Cheetah Anglewinder is a precision-engineered 1/32 steel chassis slot car built for serious racers. Whether you're tearing it up on a routed commercial track or carving fast laps on your Analog Carrera or OmniSlotBox-enhanced layout, this car delivers high performance and razor-sharp control. ⏱ On our 60’ Grand Prix track, standard Carrera cars run ~4.5-second laps — these beat that by more than a full second per lap !

Race-Proven Performance

Superior Handling Comes Standard: With its low center of gravity, balanced chassis, and wide foam rear tires, this car provides real mechanical grip — no magnets required. The motor is mounted ultra-low, minimizing magnetic pull and maximizing analog precision.

Technical Specs

& Premium Features Weight: ~90 grams (vs. ~130g typical Carrera car) Track Compatibility: 1/32 and 1/24 scale tracks Chassis: Stainless steel JKC21 anglewinder, vibration-dampened Motor: Falcon 7 – smooth, fast, reliable Gears: 64-pitch steel pinion + polymer spur w/ alloy hub and set screw Rear Wheels: Aluminum/carbon hubs with grippy foam tires Front Tires: Ultralight (decorative for most shells) Guide: Full-size commercial quick-change w/ narrow & wide braid options Body: Vacuum-formed and easy to replace Chassis Tape: Yellow wear zones show rail contact and reduce drag

Customization & Support All parts are available for reorder Multiple body options available (clear or painted) Some shells prioritize speed over scale realism Rear tire/wheel sets sold separately

Want to tune it your way?

Track & Power

Compatibility Works With: Analog Carrera Evolution/Exclusiv, routed wood tracks, OmniSlotBox analog systems Not Compatible With: Scalextric (full-size guide blade too deep) Carrera Tip: May require minor guide trimming to avoid rail rub

Power Note: Use at least 3 amps per lane — stock Carrera wall units are underpowered

Track Tip: Clean & condition your rails (Track Honey or similar) — foam tires demand a prepped surface for optimal grip

Race-Ready & CARS Club Legal This car is fully assembled and ready to race. Legal for use in CARS Club events and well suited to competitive analog racing.

🏁 Exclusive OmniSlotBox Race Prep & Custom Tuning

Every JK Cheetah anglewinder we sell is personally race-prepped by Jim Cunningham before shipment. These cars are excellent performers straight from JK, but our preparation addresses several details we have found can improve speed, consistency and durability—especially on plastic track systems such as Carrera.

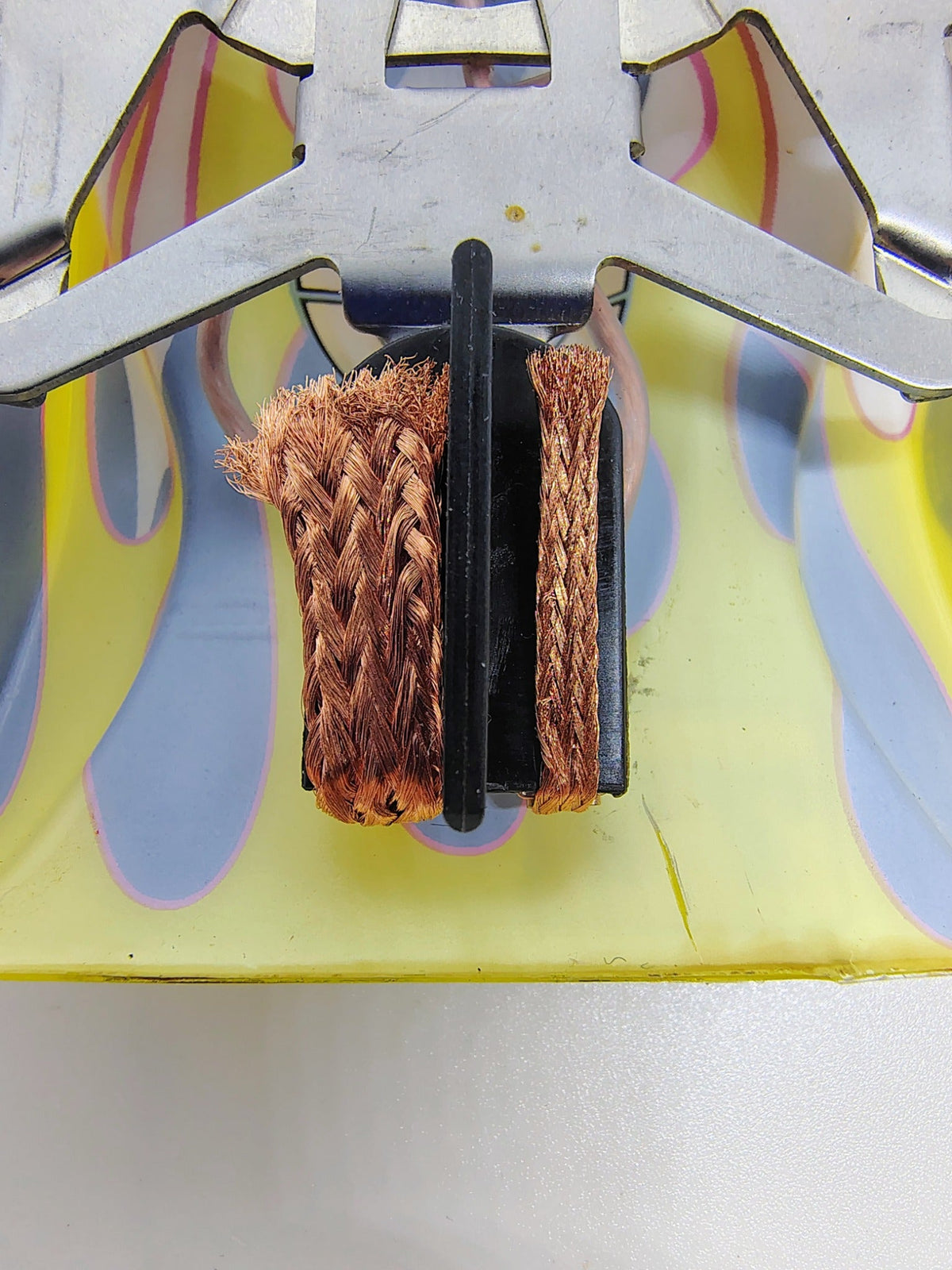

Thin, Narrow Guide Braid

We replace the thick, wide factory braid with a finer, narrower braid. On these cars, the front ride height is carried primarily by the guide and braid rather than by the front wheels, so braid thickness and width directly affect how the car sits and how freely the guide runs.

• Less friction on plastic track: Wide braid can extend beyond the metal conductor rails and rub on the surrounding plastic. Narrow braid keeps more of the contact where it belongs—on the rails.
• More consistent electrical pickup: Fine braid conforms closely to the conductor surface instead of developing a worn strip only where the rail touches it.
• Deeper guide position: Thinner braid allows the guide to sit farther into the slot.
• Lower chassis position: Because the guide carries the front of the car, reducing braid thickness can lower the front ride height and center of gravity.

Together, these changes reduce unnecessary drag and help the car run more smoothly and consistently.

Chassis Wear Indicator & Protection

We apply the yellow wear tape at the low point of the chassis. As the foam rear tires wear and the chassis moves closer to the rails, the tape provides an easy visual warning and helps insulate the chassis from accidental rail contact and arcing.

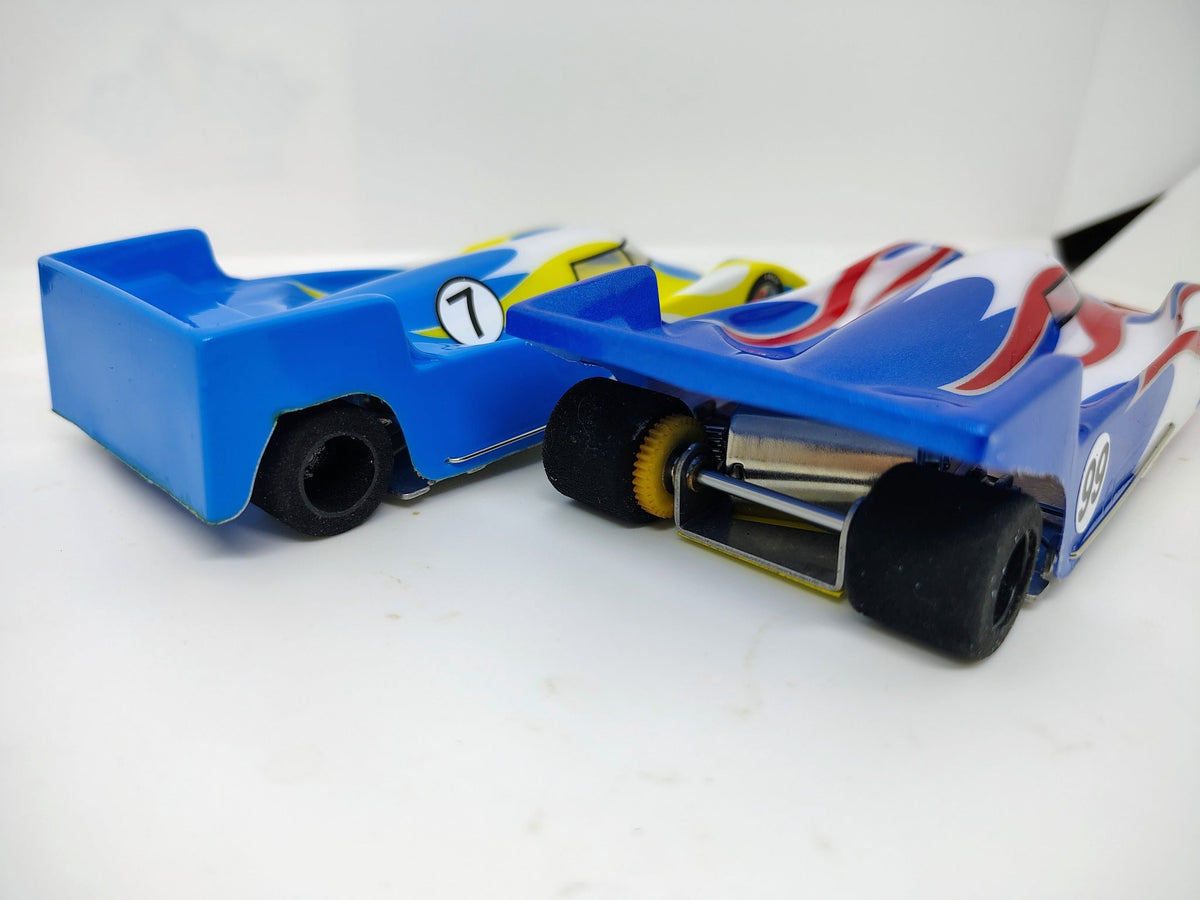

Rear Body Trim

We trim excess rear body overhang for a cleaner, more purposeful appearance and to eliminate unnecessary material behind the rear tires. More importantly, this reduces the common tendency for the lightweight body to tuck over a rear tire during a crash, which can bind the tire and stop the car.

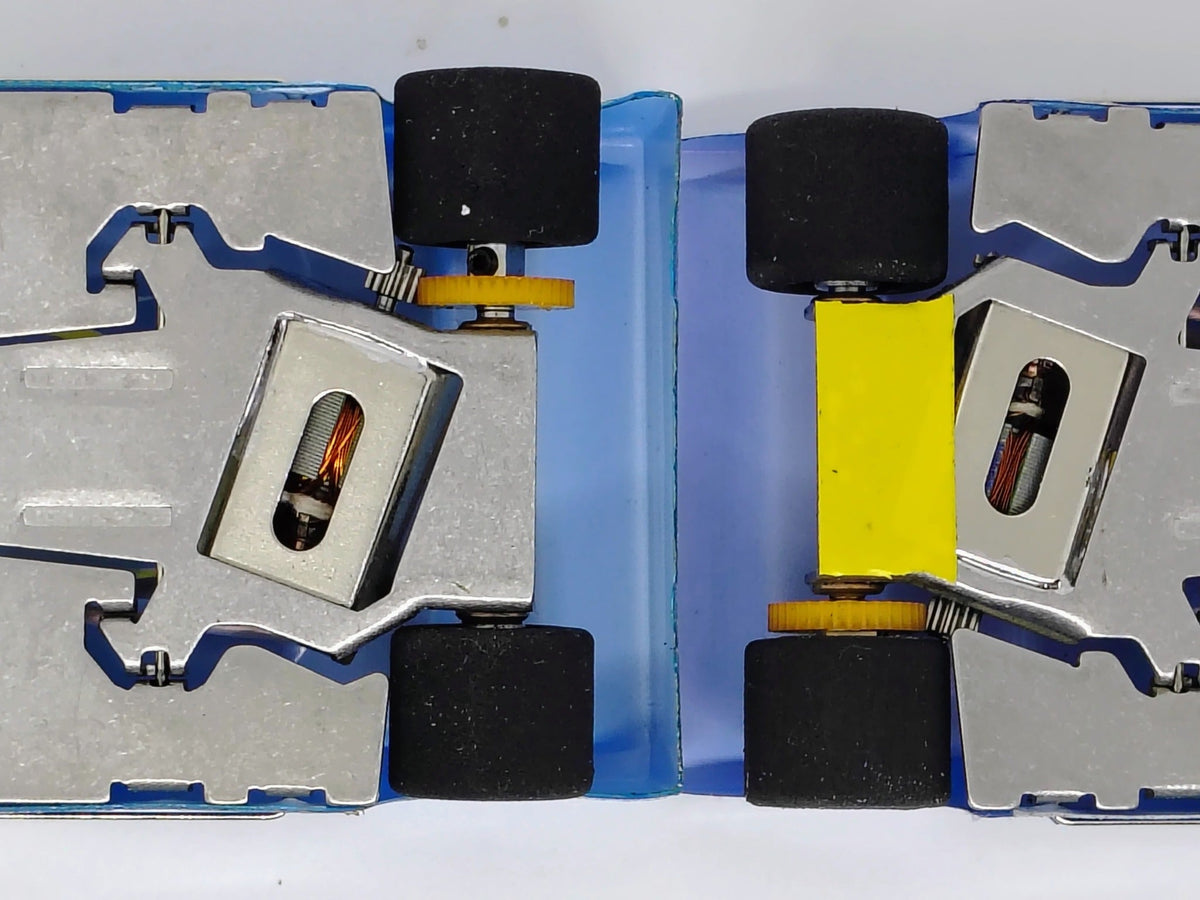

“Bullet-Proofed” Rear Axle Setup

On some recent Cheetahs, the left rear wheel has been positioned farther outward to clear the pinion gear and motor shaft. With little or no spacing behind the wheel hub, even a modest wall impact can push the wheel inward. The tire can then contact the pinion or motor shaft, causing drag, binding or tire damage.

We correct this before the car leaves our shop by moving the pinion farther inboard where needed, trimming excess motor shaft, adding proper axle spacers, and setting wheel position and side play so the rear assembly runs freely and stays where it belongs.

The result is not simply a stock JK car taken out of the box. It is a Cheetah that has been inspected, adjusted and race-prepped at OmniSlotBox using what we have learned from running these cars on our own tracks.
