OmniSlotBox Presents: JK Cheetah 1/32 Anglewinder Steel Slot Car Unleash next-level performance. The JK Cheetah Anglewinder is a precision-engineered 1/32 steel chassis slot car designed for serious racers. Whether you're tearing it up on a commercial wood track or carving fast laps on your Analog Carrera or OmniSlotBox-enhanced setup, this car delivers high performance and responsive handling. On our 60’ Grand Prix track, standard Carrera cars run ~4.5-second laps — these beat that by more than a full second per lap !

Race-Proven Performance

Superior Handling Comes Standard: Thanks to its low center of gravity, balanced chassis, and wide foam rear tires, this car delivers mechanical grip without relying on magnets. The motor sits ultra-low in the chassis but adds virtually no magnetic pull — it's all about pure, analog performance.

Technical Specs & Components

Weight: ~90 grams (versus ~130g for typical Carrera cars) Track Fit: Compatible with 1/32 and 1/24 scale tracks Premium Features Include: Chassis: Rugged stainless steel JKC21 anglewinder with built-in vibration damping Motor: Proven Falcon 7 — fast, smooth, reliable Gears: 64-pitch steel pinion + alloy hub polymer spur gears with set screw Rear Wheels: Hybrid aluminum/carbon hubs with ultra-grippy foam tires Front Tires: Ultralight and mostly decorative — many bodies use decals Guide: Quick-change full-size commercial type, with both wide and narrow braid options Body: Lightweight vacuum-formed shell — easy to swap or upgrade Chassis Tape: Yellow wear tape protects and signals rail contact zones

Customization & Support Every part is replaceable by special order Rear tire/wheel sets available separately Choose from multiple body styles — clear or painted (prices vary by realism and licensing) Some bodies prioritize aerodynamic speed over scale accuracy for competitive edge

Track & Power

Guidelines

Compatible with: Most routed wood tracks, all Analog Carrera (Evolution/Exclusiv), and OmniSlotBox systems NOT compatible with: Scalextric tracks (due to full-size guide blade) On Carrera tracks, you may need to trim the guide blade slightly to avoid bottom contact For best results, use a power supply with at least 3 amps per lane — stock Carrera units are underpowered Track prep tip: Use “Track Honey” or similar conditioner — foam tires need a clean, treated surface On a properly prepared track, this car rivals direct-drive models and outperforms most 1/32 magnet cars.

Race-Ready & Club Legal

This car comes fully assembled and is CARS Club legal.

🏁 Exclusive OmniSlotBox Race Prep & Custom Tuning

Every JK Cheetah anglewinder we sell is personally race-prepped by Jim Cunningham before shipment. These cars are excellent performers straight from JK, but our preparation addresses several details we have found can improve speed, consistency and durability—especially on plastic track systems such as Carrera.

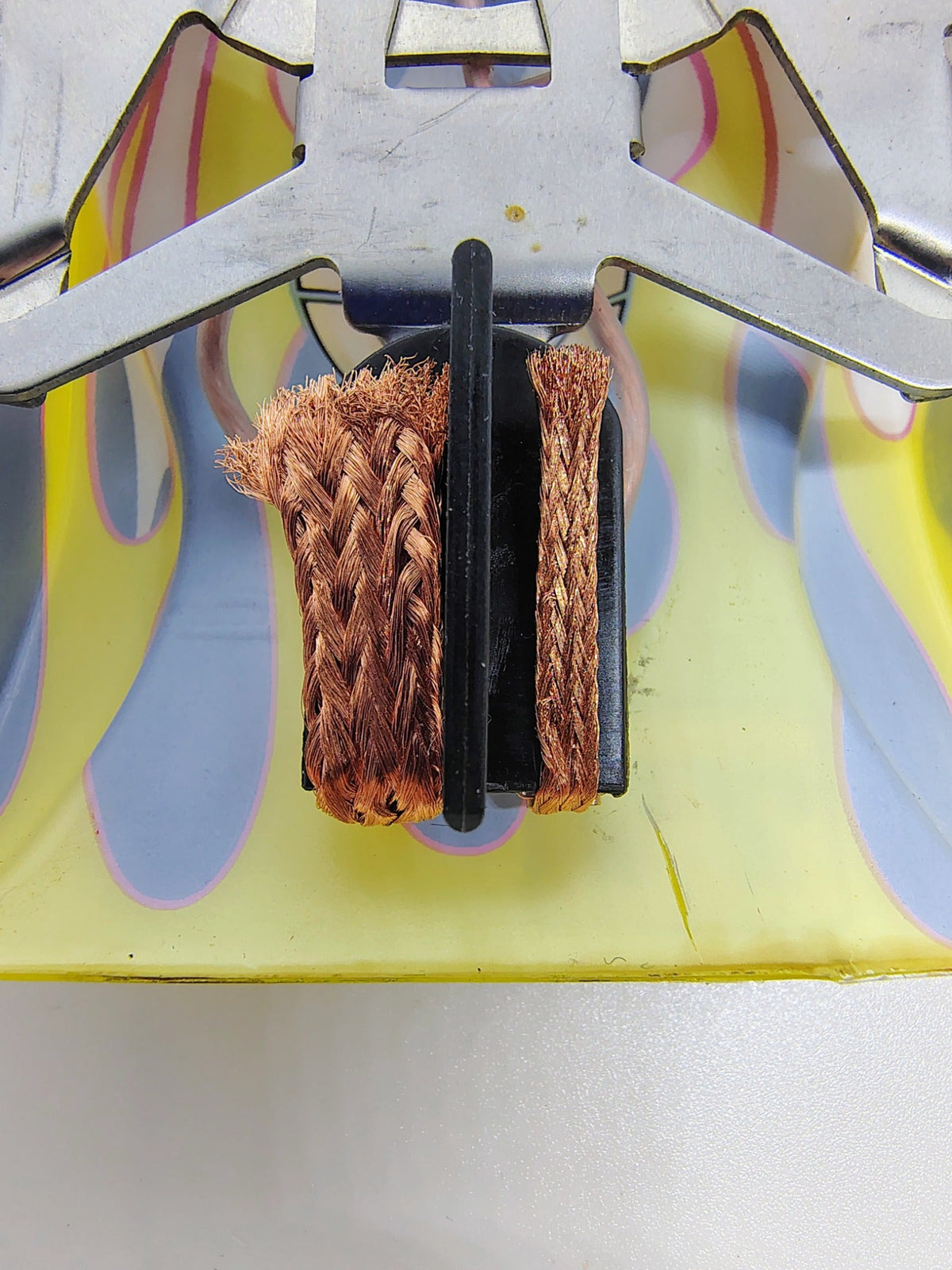

Thin, Narrow Guide Braid

We replace the thick, wide factory braid with a finer, narrower braid. On these cars, the front ride height is carried primarily by the guide and braid rather than by the front wheels, so braid thickness and width directly affect how the car sits and how freely the guide runs.

• Less friction on plastic track: Wide braid can extend beyond the metal conductor rails and rub on the surrounding plastic. Narrow braid keeps more of the contact where it belongs—on the rails.
• More consistent electrical pickup: Fine braid conforms closely to the conductor surface instead of developing a worn strip only where the rail touches it.
• Deeper guide position: Thinner braid allows the guide to sit farther into the slot.
• Lower chassis position: Because the guide carries the front of the car, reducing braid thickness can lower the front ride height and center of gravity.

Together, these changes reduce unnecessary drag and help the car run more smoothly and consistently.

Chassis Wear Indicator & Protection

We apply the yellow wear tape at the low point of the chassis. As the foam rear tires wear and the chassis moves closer to the rails, the tape provides an easy visual warning and helps insulate the chassis from accidental rail contact and arcing.

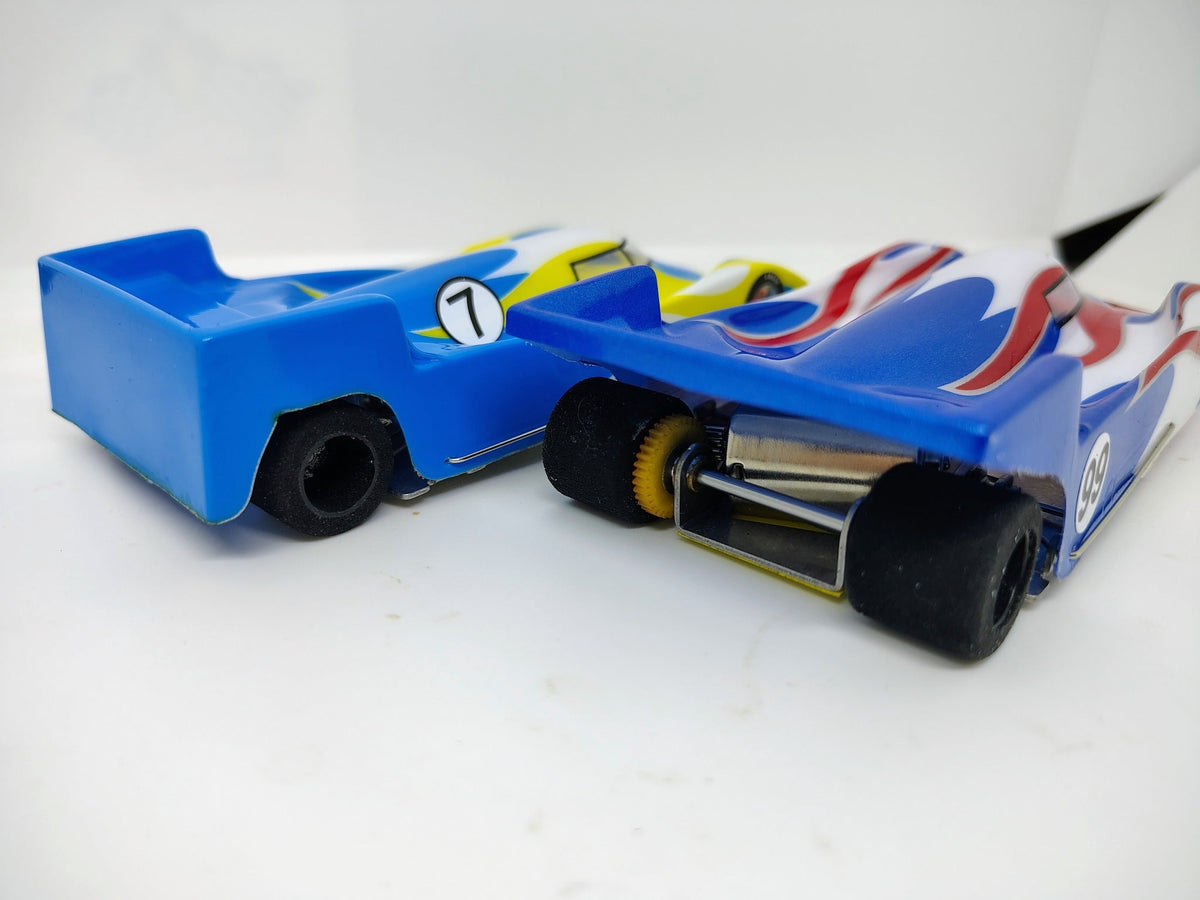

Rear Body Trim

We trim excess rear body overhang for a cleaner, more purposeful appearance and to eliminate unnecessary material behind the rear tires. More importantly, this reduces the common tendency for the lightweight body to tuck over a rear tire during a crash, which can bind the tire and stop the car.

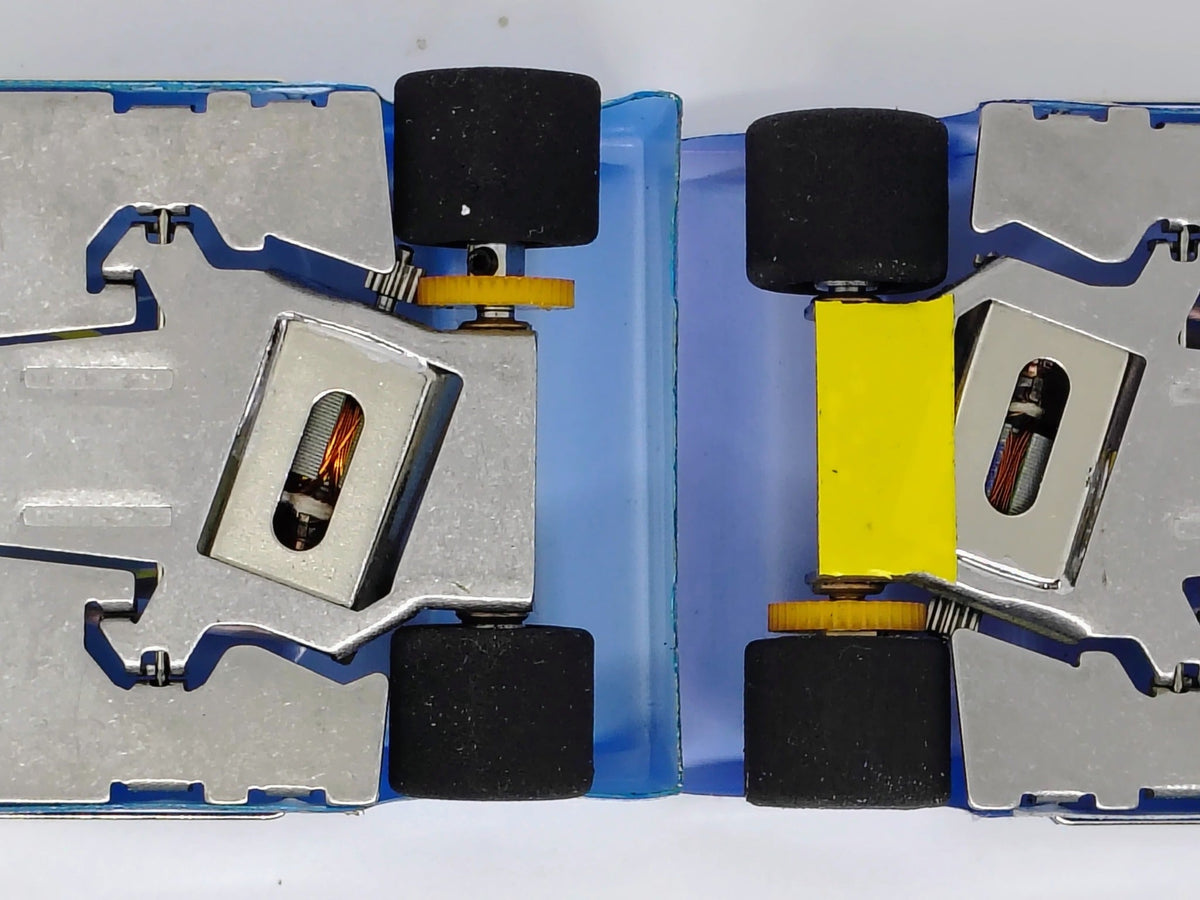

“Bullet-Proofed” Rear Axle Setup

On some recent Cheetahs, the left rear wheel has been positioned farther outward to clear the pinion gear and motor shaft. With little or no spacing behind the wheel hub, even a modest wall impact can push the wheel inward. The tire can then contact the pinion or motor shaft, causing drag, binding or tire damage.

We correct this before the car leaves our shop by moving the pinion farther inboard where needed, trimming excess motor shaft, adding proper axle spacers, and setting wheel position and side play so the rear assembly runs freely and stays where it belongs.

The result is not simply a stock JK car taken out of the box. It is a Cheetah that has been inspected, adjusted and race-prepped at OmniSlotBox using what we have learned from running these cars on our own tracks.
