OmniSlotBox Presents: JK Cheetah 1/32 Anglewinder Steel Slot Car

Unleash Next-Level Performance

The JK Cheetah Anglewinder is a race-tuned, precision-built 1/32 slot car designed for serious analog racers. Whether you're competing on a routed wood track or pushing lap times on an OmniSlotBox-powered Carrera layout, this steel-chassis machine delivers excellent speed, grip, and responsive handling.

On our 60-foot Grand Prix track, stock Carrera cars average about 4.5 seconds per lap. JK Cheetah cars can beat that by more than a full second—all without magnets.

🏁 Race-Proven Performance

This chassis doesn’t need a magnet to stick. With its low center of gravity, wide foam rear tires, and balanced stainless-steel frame, the JK Cheetah develops strong mechanical grip and rewards smooth driving with faster, cleaner laps.

🔧 Technical Specifications

• Weight: Approximately 90 grams, compared with roughly 130 grams for a typical Carrera car
• Track Fit: Suitable for both 1/32 and 1/24 scale analog tracks with appropriate guide clearance
• Chassis: Stainless-steel JKC21 anglewinder chassis with built-in vibration damping
• Motor: Falcon 7 – smooth, fast, and reliable
• Gearing: 64-pitch steel pinion with alloy-hub polymer spur gear and set screw
• Rear Wheels: Aluminum/carbon hybrid hubs with high-grip foam tires
• Front Wheels: Lightweight front wheels; some racing bodies may use molded or decal-style front-wheel detailing
• Guide: Quick-change commercial-style guide with wide and narrow braid options available
• Body: Lightweight vacuum-formed body; styles vary
• Chassis Tape: Yellow wear strip helps identify chassis contact areas for tuning

🛠️ Customization & Replacement Parts

• Replacement components are available by special order
• Rear tire and wheel assemblies are available separately
• Choose from a variety of clear and painted bodies
• Body pricing varies depending on detail, paint, and licensing
• Some bodies prioritize aerodynamics over exact scale appearance—go fast or look fast, your call

🏁 Exclusive OmniSlotBox Race Prep & Custom Tuning

Every JK Cheetah anglewinder we sell is personally race-prepped by Jim Cunningham before shipment. These cars are excellent performers straight from JK, but our preparation addresses several details we have found can improve speed, consistency and durability—especially on plastic track systems such as Carrera.

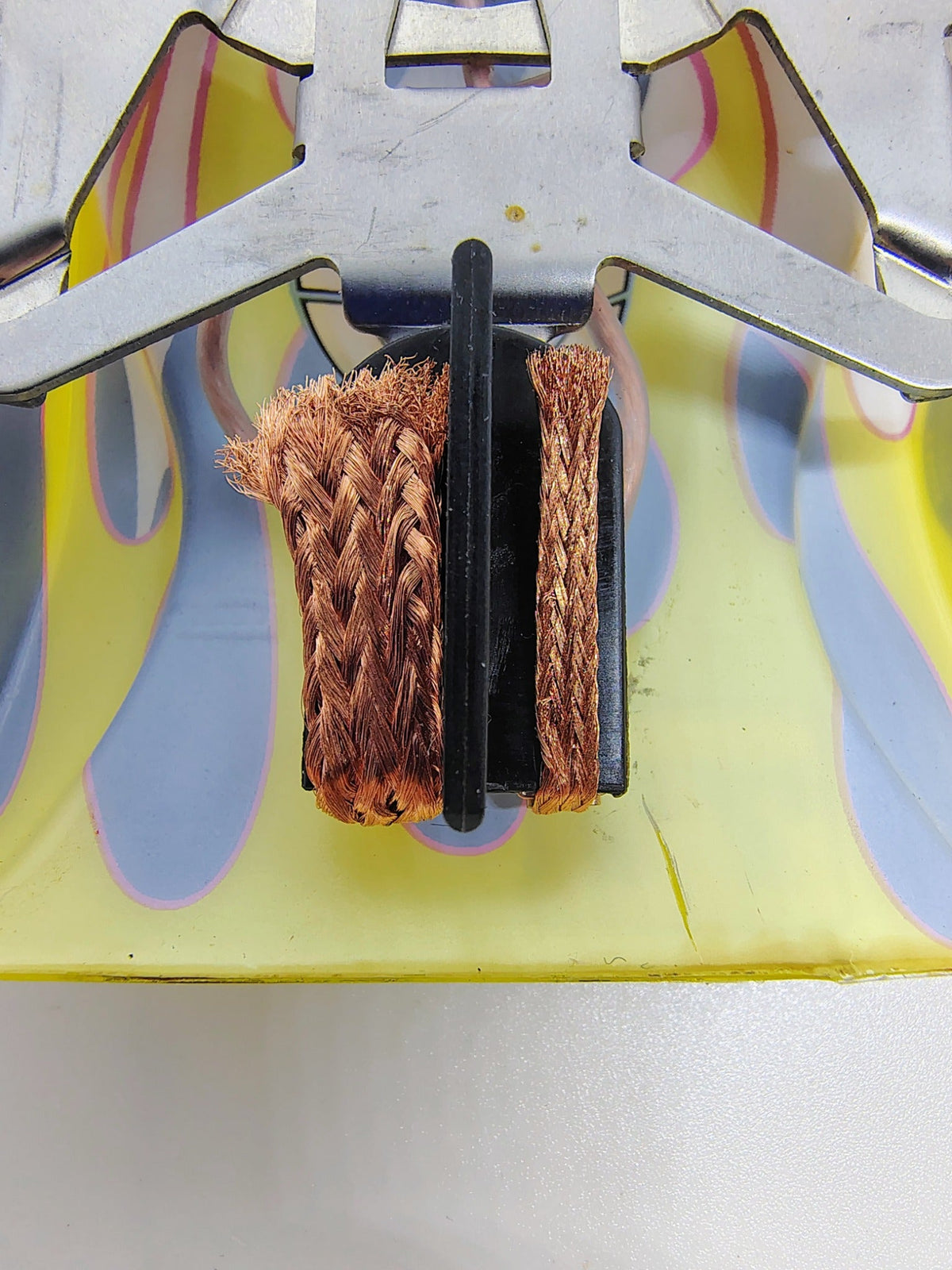

Thin, Narrow Guide Braid

We replace the thick, wide factory braid with a finer, narrower braid. On these cars, the front ride height is carried primarily by the guide and braid rather than by the front wheels, so braid thickness and width directly affect how the car sits and how freely the guide runs.

• Less friction on plastic track: Wide braid can extend beyond the metal conductor rails and rub on the surrounding plastic. Narrow braid keeps more of the contact where it belongs—on the rails.
• More consistent electrical pickup: Fine braid conforms closely to the conductor surface instead of developing a worn strip only where the rail touches it.
• Deeper guide position: Thinner braid allows the guide to sit farther into the slot.
• Lower chassis position: Because the guide carries the front of the car, reducing braid thickness can lower the front ride height and center of gravity.

Together, these changes reduce unnecessary drag and help the car run more smoothly and consistently.

Chassis Wear Indicator & Protection

We apply the yellow wear tape at the low point of the chassis. As the foam rear tires wear and the chassis moves closer to the rails, the tape provides an easy visual warning and helps insulate the chassis from accidental rail contact and arcing.

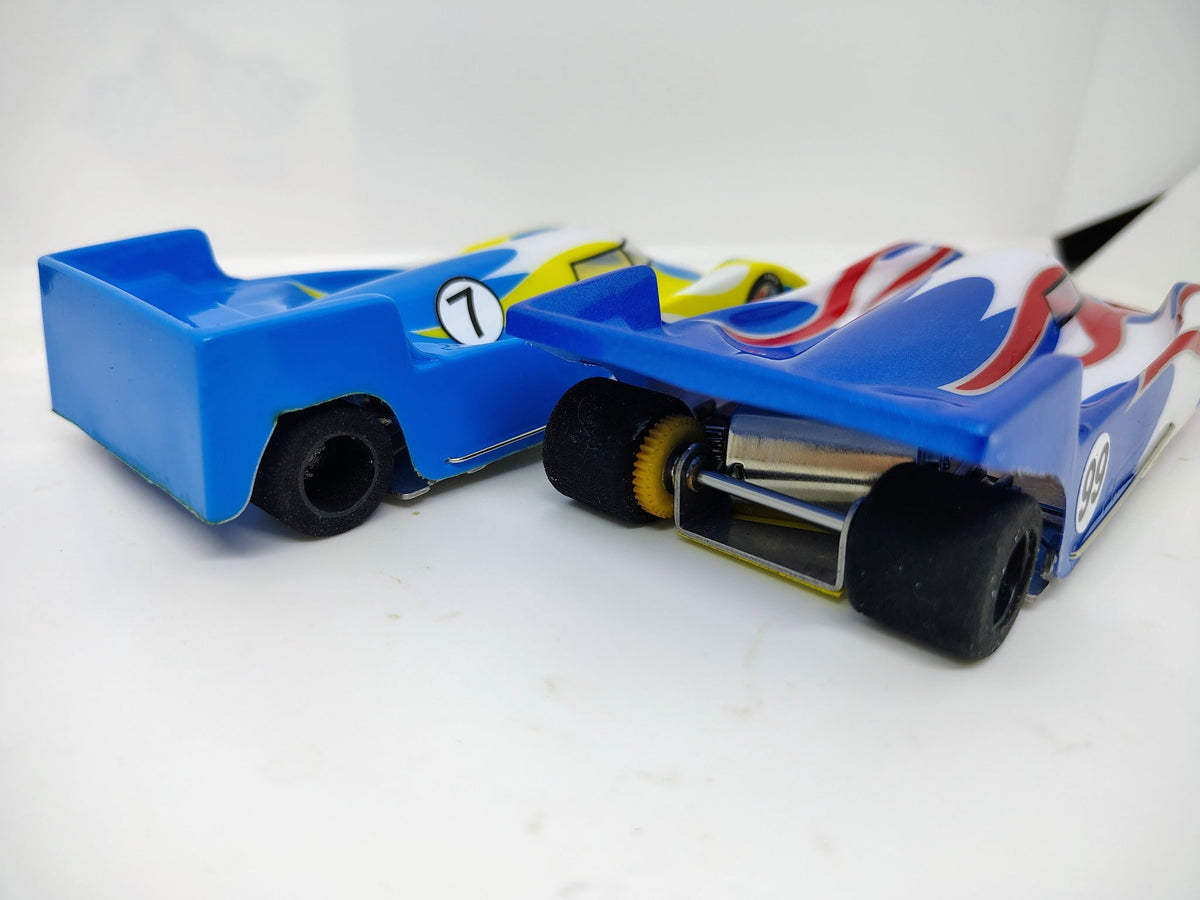

Rear Body Trim

We trim excess rear body overhang for a cleaner, more purposeful appearance and to eliminate unnecessary material behind the rear tires. More importantly, this reduces the common tendency for the lightweight body to tuck over a rear tire during a crash, which can bind the tire and stop the car.

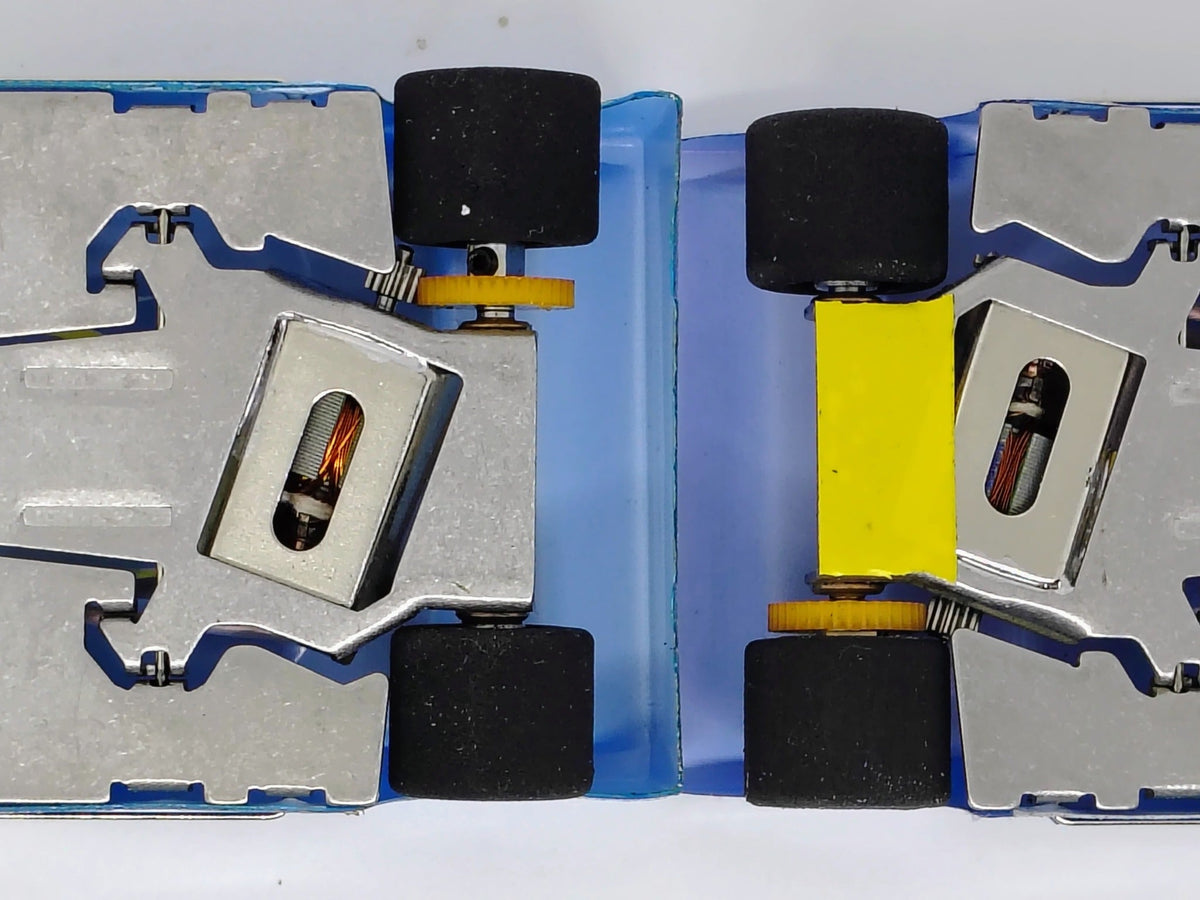

“Bullet-Proofed” Rear Axle Setup

On some recent Cheetahs, the left rear wheel has been positioned farther outward to clear the pinion gear and motor shaft. With little or no spacing behind the wheel hub, even a modest wall impact can push the wheel inward. The tire can then contact the pinion or motor shaft, causing drag, binding or tire damage.

We correct this before the car leaves our shop by moving the pinion farther inboard where needed, trimming excess motor shaft, adding proper axle spacers, and setting wheel position and side play so the rear assembly runs freely and stays where it belongs.

The result is not simply a stock JK car taken out of the box. It is a Cheetah that has been inspected, adjusted and race-prepped at OmniSlotBox using what we have learned from running these cars on our own tracks.

🔌 Track Compatibility

Compatible with:

• Analog Carrera Evolution and Exclusiv track
• Routed wood tracks
• OmniSlotBox-equipped Carrera layouts operating in analog mode

Not compatible with standard Scalextric track because the commercial-style guide blade is too large for the Scalextric slot.

⚡ Power Requirements

A power supply capable of delivering a minimum of approximately 3 amps per lane is recommended. Standard Carrera power supplies are not designed to provide the current normally used with this type of high-performance analog slot car.

🛞 Foam Tire Tip

For best grip, use Track Honey or a similar foam-tire traction treatment on an appropriately prepared racing surface. Foam tires perform best on a clean, properly maintained track.

Properly set up and driven, the JK Cheetah delivers performance far beyond most conventional magnet-equipped 1/32 RTR cars and can approach the pace of much more specialized racing equipment.

🏆 Race-Ready & CARS Club Legal

This car comes fully assembled and ready to run. It is legal for the CARS Club 1/32 Steelie  Class, making it an excellent choice for racers who want serious performance without having to build a complete car from scratch.
