    $52.00
    In stock!
    This item is expected to return to stock soon and will be shipped when available.
    Select The Options Above

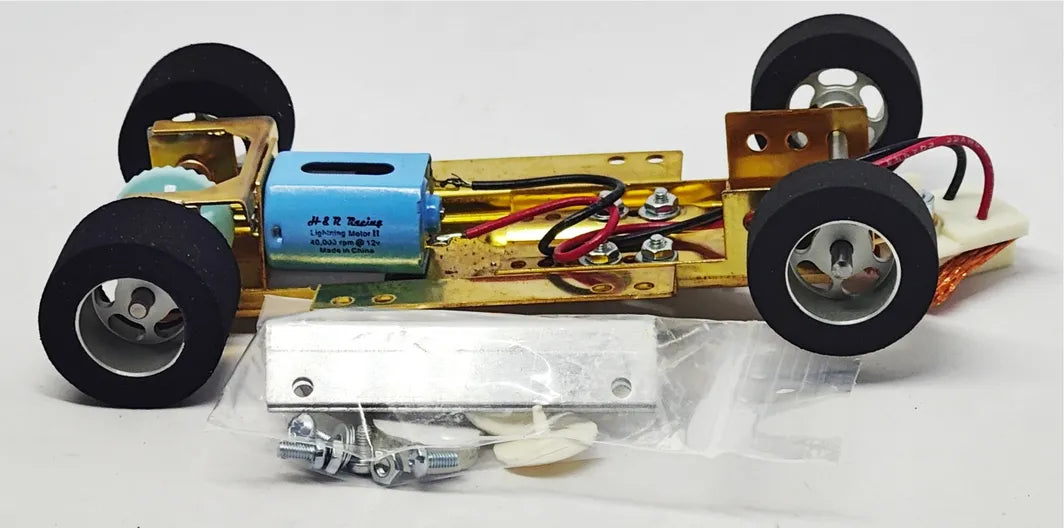

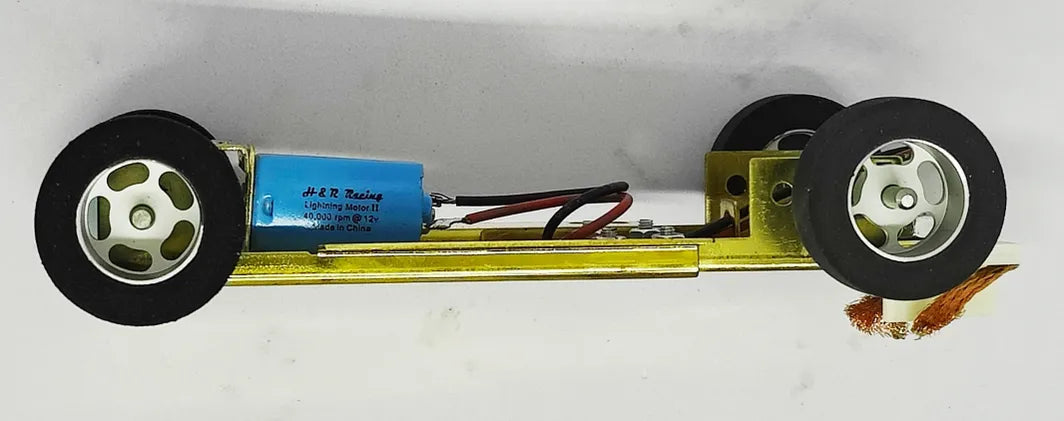

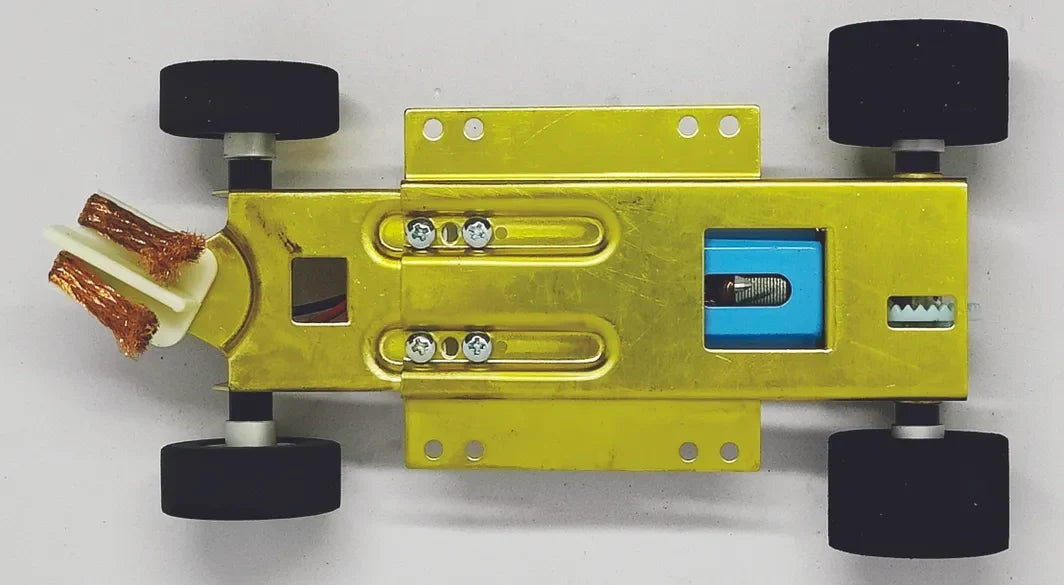

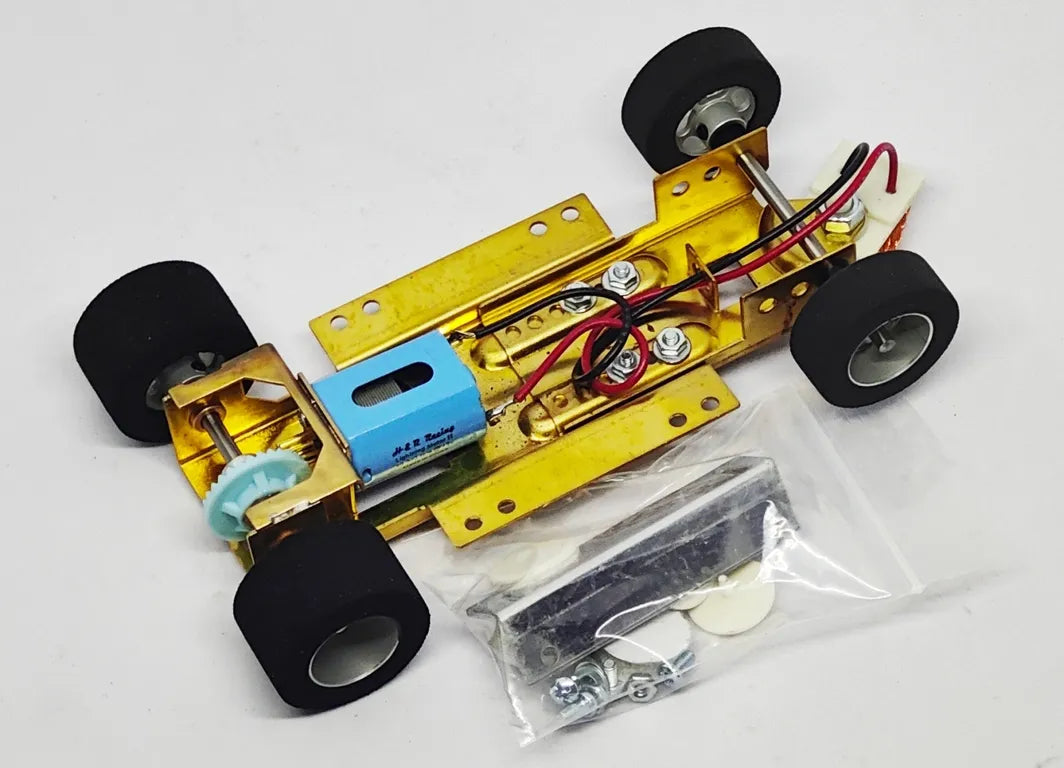

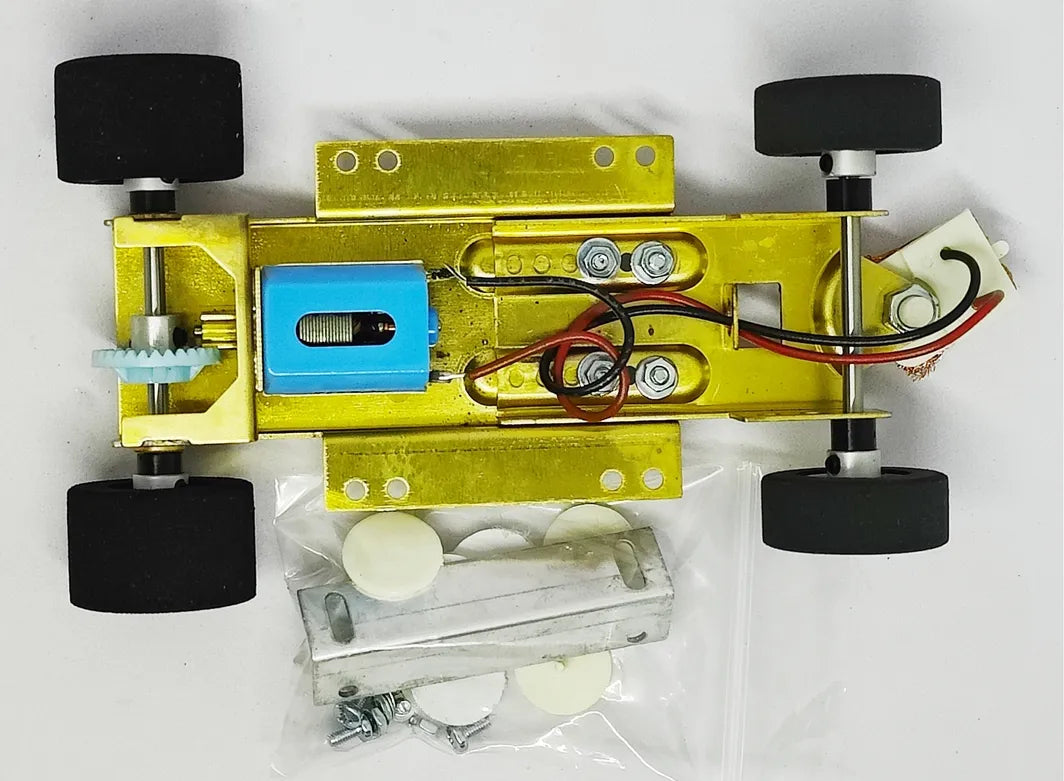

    H&R Racing HRCH04 1/24 Adjustable RTR Chassis – 40K Motor & Fish Rubber Tires

    High-performance rolling chassis ready for your 1/24 or 1/25 scale body.

    The H&R Racing HRCH04 is a durable, adjustable 1/24 scale RTR chassis built for serious racing on commercial routed tracks and properly powered analog Carrera layouts.

    With its 40,000 RPM HRML2 motor, adjustable wheelbase, aluminum rear wheels, Fish Rubber tires, and proven inline drivetrain, it makes an excellent foundation for NASCAR-style builds, vacuum-formed bodies, and hard plastic 1/24 or 1/25 model bodies.

    We race these regularly with the CARS Club on our OmniSlotBox-enhanced Carrera track in Sherwood, Arkansas, as well as on commercial routed tracks. They are fast, smooth, durable, and easy to tune.

    Features & Adjustability

    • Scale: 1/24 chassis for 1/24 and 1/25 bodies
    • Adjustable Wheelbase: 3-5/8" to 4-7/8" / approximately 92–123mm
    • Motor: HRML2 40,000 RPM high-performance motor
    • Rear Tires: Natural Fish Rubber foam tires on aluminum setscrew hubs
    • Front Tires: Foam rubber
    • Chassis: HRCH02 adjustable inline chassis
    • Gearing: 9-tooth pinion / 33-tooth crown gear
    • Body Mounting: Includes body mounting hardware

    Complete Parts Specification

    • Chassis: HRCH02 Bare Adjustable Chassis
    • Motor: HRML2 40K RPM Motor
    • Pinion: HR401 – 9 Tooth
    • Crown Gear: HR209 – 33 Tooth
    • Guide: HR602
    • Braids: HR302
    • Rear Wheels & Tires: HR1203 – 27 x 16mm Natural Fish Rubber on Aluminum Hubs
    • Front Wheels & Tires: HR1201 – 27 x 12mm Foam Rubber
    • Axle Bushings: HR307 Oilite Bushings
    • Optional Rear Bearings: HR603 Ball Bearings
    • Body Mount Kit: HR502
    • Axle Spacers: HR601

    Recommended Use

    • Tracks: Commercial routed wood tracks and high-current analog Carrera tracks
    • OmniSlotBox Systems: Excellent choice for Carrera layouts converted for true analog racing with OmniSlotBox
    • Power: A high-current power supply is recommended; approximately 10A provides useful reserve for performance racing
    • Bodies: Ideal for NASCAR-style bodies and many other 1/24–1/25 vacuum-formed or hard plastic shells

    A Proven Club Racing Platform

    The HRCH04 gives racers a strong, straightforward platform without requiring a scratch-built chassis. Adjust the wheelbase, mount your body, tune the tires and gearing, and go racing.

    Fast enough for serious competition, simple enough to maintain, and flexible enough for a wide range of 1/24 scale builds.
